ALL IN ONE, BLUETOOTH BATTERY MONITOR

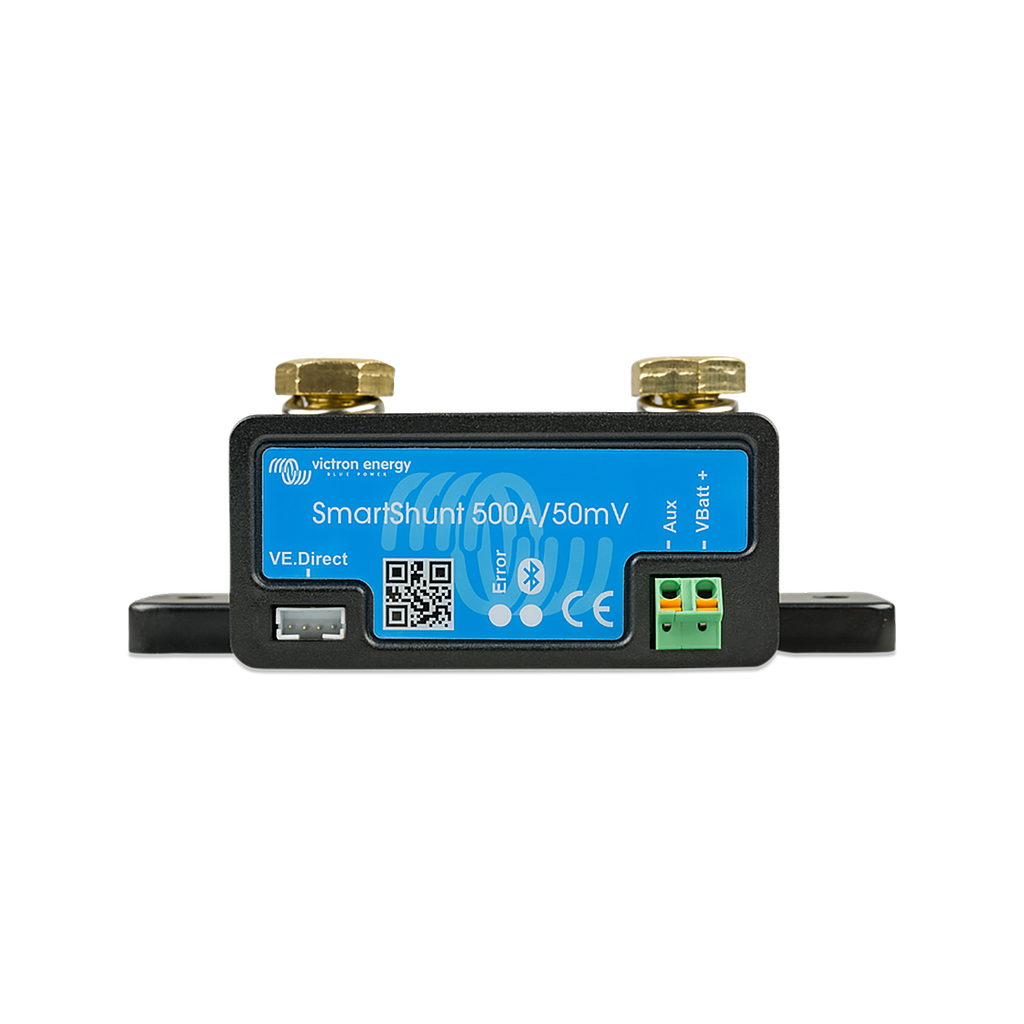

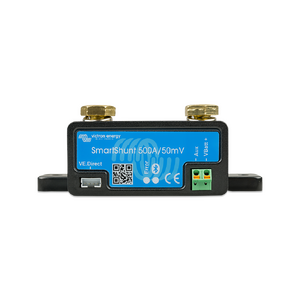

The Victron SmartShunt is an all in one battery monitor, only without a display. Your phone acts as the display.


The SmartShunt connects via Bluetooth to the VictronConnect App on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more. Alternatively the SmartShunt can be connected and be read by a GX device. Connection to the SmartShunt is made via a VE.Direct cable.


The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted.



WHATS IN THE BOX

  • 1 x Victron Smart Shunt 500A Battery Monitor
  • 2 x 1.5m (59") red cables with fuse

5 YEAR MANUFACTURERS WARRANTY
30 DAY MONEY BACK GUARANTEE

  • Bluetooth compatible - monitor via your smart device using VictronConnect
  • View historical data - kept for up to 45 days
  • Monitor your battery - measures battery voltage and current, calculates state of charge and time to go
  • GX Device compatible via a DE direct cable

PRODUCT SPECIFICATIONS - VICTRON SMART SHUNTS

SKU M.VIC-BMVSH500  M.VIC-BMVSH1000 VIC-IP65SS
Supply voltage range (VDC) 6.5 - 70
Current Draw <1mA
Input voltage range, auxillary battery (VDC) 6.5 - 70
Battery capacity (Ah) 1 - 9999
Operating Temperature Range (oC) -40 to 50
Measures coltage of second battery, or temperature, or midpoint Yes
Temperature measurement range (oC) -20 to 50
VE. Direct communication Port Yes
Resolution and Accuracy
Current (A) ±0.01
Voltage (V) ±0.01
Amp hours (Ah) ±0.01
State of charge (0-100%) (%) ±0.01
Time to go (min) ±1
Temperature (if optional temperature sensor connected) (oC) ±1 (0-50)
Accuracy of current measurement (%) ±0.4
Offset (mA) Less than 20 Less than 40 Less than 20
Accuracy of voltage measurement (%) ±0.3
Dimensions (H x W x D mm) 46 x 120 x 54 68 x 168 x 75 46 x 120 x 54
Shunt connection bolts M10
Protection category IP21 IP65
Stored Trends
Data Stored Battery voltage, current, state of charge % as well as the Aux input (Battery temperature, or midpoint deviation, or starter battery voltage)
Number of days trends data is stored 46



Specifications

SKU M.VIC-BMVSH500
Brand Victron
Shipping Weight 0.4000kg
Shipping Width 0.130m
Shipping Height 0.070m
Shipping Length 0.080m
Shipping Cubic 0.000728000m3

Download

Q: What settings do I need for a lithium battery?

A: The "Battery Capacity" section is variable depending on what size battery you have, but all other settings should be as displayed in the photo, unless advised otherwise.

If you have any questions about the setup or need help with the app, please give us a call on 08 6205 6868.


Battery Settings
Battery capacity  Set to your batteries capacity
Charged voltage  14.1V
Discharge floor  0% recommended
Tail current  3%
Charged detection time 3 min
Peukert's exponent  1.05
Charge efficiency factor 96%
Current Threshold 0.10A
Time to go averaging period 3 min
Battery SOC on reset

"Keep SOC:

So if you flatten your battery the shunt will start back at zero % on reset rather than full.

Alarms
Alarms

Low SoC:

Set - 20%

Cear - 30%
Low voltage:

Set - 12.52V

Clear - 12.8V

(leave high voltage & starter alarms turned off)

Misc
Monitor mode Battery monitor
Aux Input If not connecting voltage sense wire to start battery, then change to "None"
VE Smart Networking
If you have multiple Victron Smart devices, create a network on the Battery monitor, then add each smart device to the created network.
