MAXIMISE YOUR ENERGY HARVEST WHILST MAINTAINING YOUR BATTERY HEALTH



A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.


The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.



MPPT: ULTRA FAST MAXIMUM POWER POINT TRACKING

By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.



REMOTE MONITORING AND CONTROL

Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in Bluetooth by pairing it with your smartphone or other device via VictronConnect.



If your installation is connected to the internet with a GX device (contact us for pricing) the Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both VictronConnect and VRM are free to use. For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the  GlobalLink 520 (contact us for pricing).



FLEXIBLE CHARGE ALGORITHM

Fully programmable charge algorithm and eight pre-programmed algorithms, selectable with a rotary switch (see manual for details).



WHATS IN THE BOX

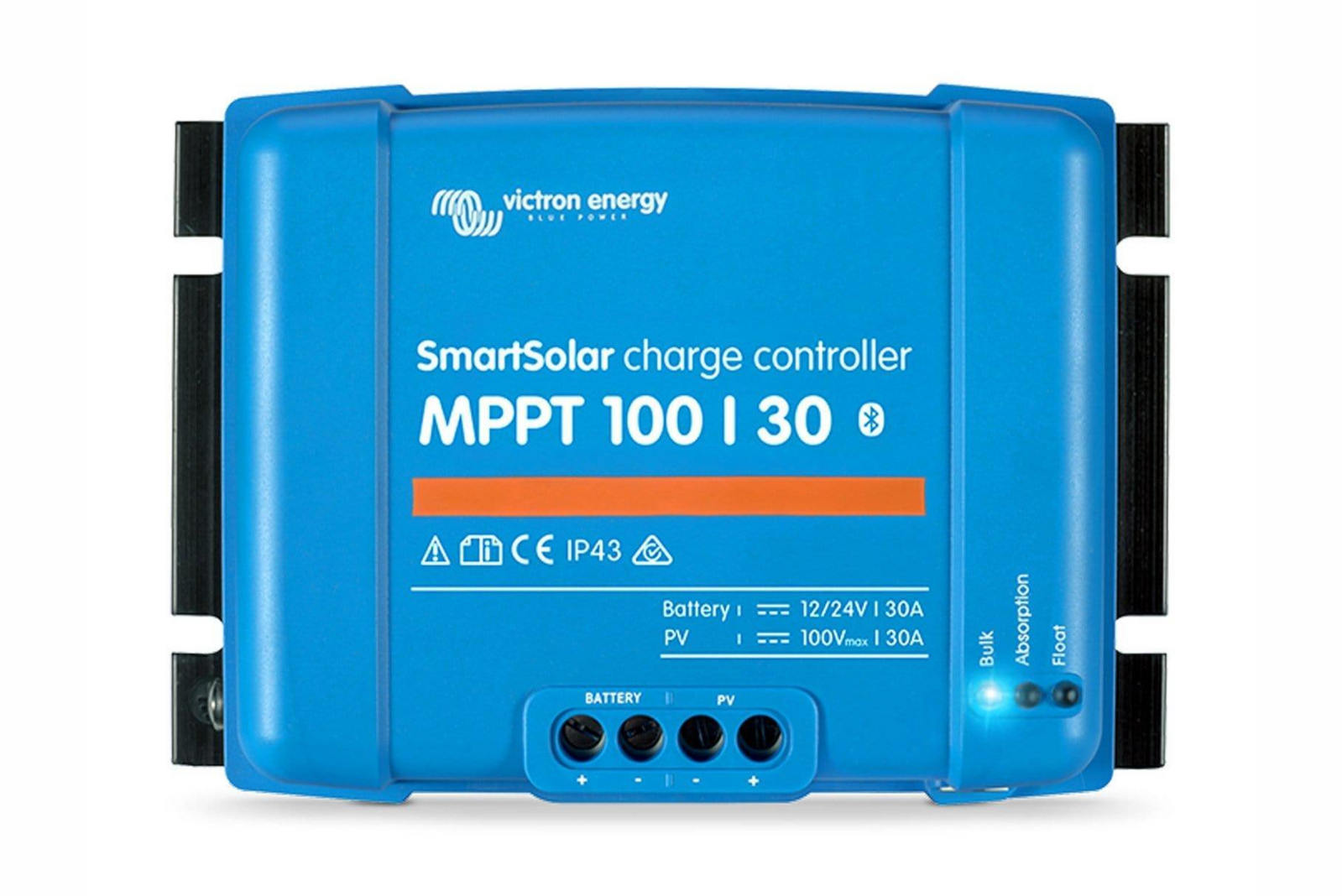

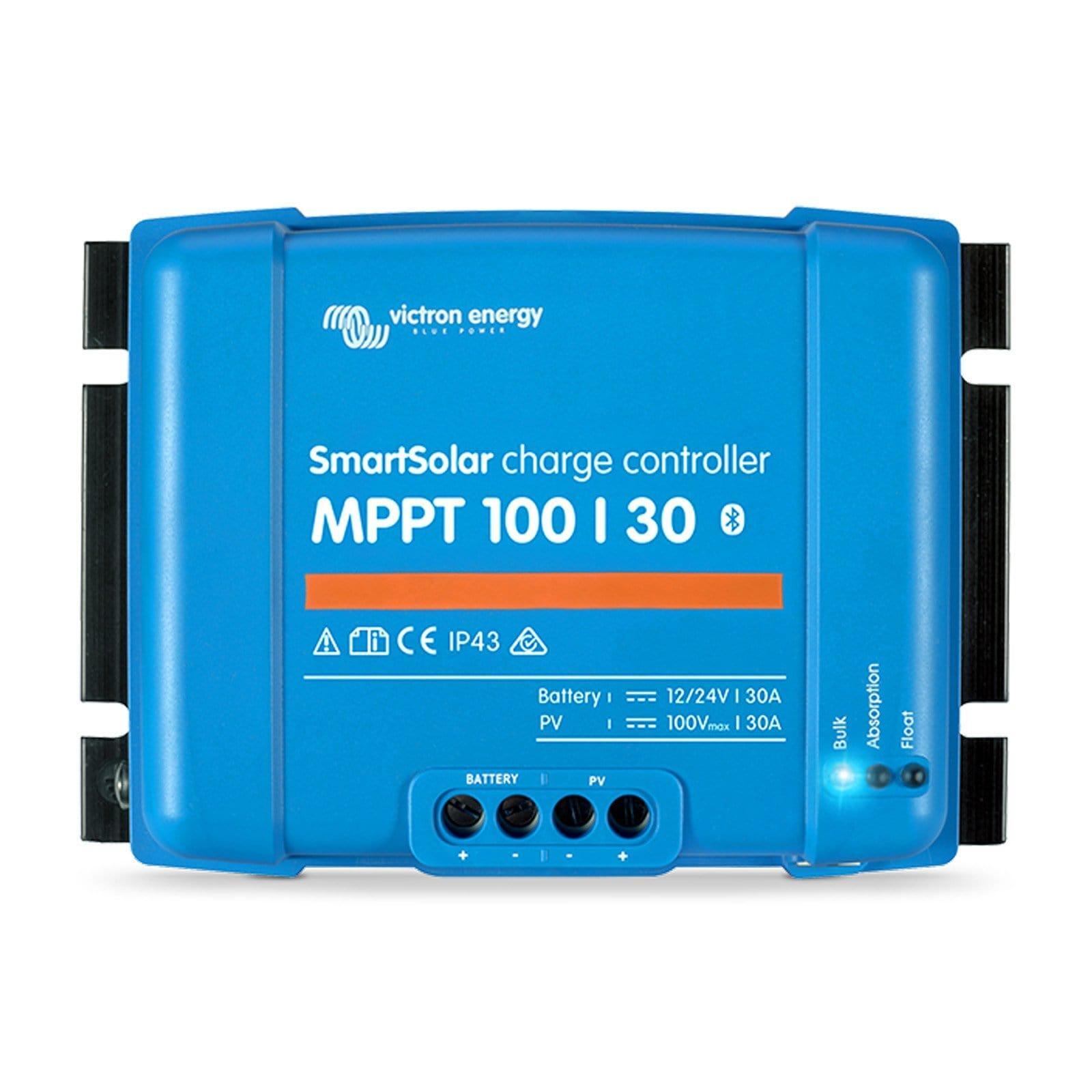

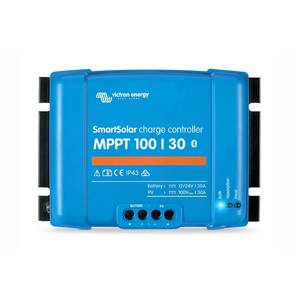

  • 1 x Victron Smart Solar MPPT Charge Controller 100/30 With Bluetooth

5 Year Manufactures Warranty

  • Bluetooth Smart built-in  - the wireless solution to set-up, monitor, update and synchronise
  • MPPT technology - ultra-fast MPPT controller will improve energy harvest by up to 30 % compared to PWM charge controllers
  • Programmable
  • Internal temperature sensor
  • Fully discharged battery recovery function - will initiate charging even if the battery has been discharged to zero volts

PRODUCT SPECIFICATIONS - VICTRON SMART SOLAR MPPT

MODEL 75/10 75/15 100/20 100/30 100/50
Battery Voltage (Auto Select) (V) 12/24 12/24/48 12/24
Rated Charge Current (A) 10 15 20 30 50
Nominal PV Power, 12V 1a,b) (W) 145 220 290 440 700
Nominal PV Power, 24V 1a,b) (W) 290 440 580 880 1400
Nominal PV Power, 48V 1a,b) (W) N/A 1160 N/A
Max. PV Short Circuit Current 2) (A) 13 15 20 35 60
Automatic Load Disconnect Yes No
Maximum PV Open Circuit Voltage (V) 75 100
Peak Efficiency 98%
Self Consumption (12V / 24V / 48V mA) 25 / 15 26 / 20 / 19 30 / 20
Charge Voltage 'absoprtion' (V) 14.4 / 28.8 (adjustable) 14.4 / 28.8 / 57.6 (adjustable) 14.4 / 28.8 (adjustable)
Charge Coltage 'float' (V) 13.8V / 27.6V (adjustable) 13.8 / 27.6 / 55.2 (adjustable) 13.8V / 27.6V (adjustable)
Charge Algorithm Multi stage adaptive
Temperature Compensation -16mV / oC resp. -32mV /oC
Max. Continuous Load Current (A) 15 20 / 20 / 1 N/A
Low Voltage Load Disconnect 11.1V / 22.2V / 44.4V or 11.8V / 23.6V / 47.2V or Battery Life algorithm N/A
Low Voltage Load Reconnect 13.1V / 26.2V / 52.4V or 14V / 28V / 56V or Battery Life algorithm N/A
Protection Battery reverse polarity (fuse) / Output short circuit / Over temperature Output short circuit / Over temperature PV reverse polarity / Output short circuit / Over temperature
Operating Temperature -30 to +60oC (full rated output up to 40oC)
Humidity 95% non-condensing
Data Communication Port VE. Direct (see the data communication white paper on Victrons website)
ENCLOSURE
Colour Blue (RAL 5012)
Power Terminals 6mm2 / AWG10 16mm2 / AWG6
Protection Category IP43 (electronic components), IP22 (connection area)
Weight (kg) 0.5 0.65 1.3
Dimensions (H x W x Dmm) 100 x 113 x 40 100 x 131 x 60 130 x 186 x 70
STANDARDS
Safety

EN/IEC 62109-1, UL 1741, CSA C22.2

1a) If more PV power is connected, the controller will limit input power

1b)The PV voltage must exceed Vbat +5V for the controller to start

2) A PV array with higher short circuit current may damage the controller

Specifications

SKU R.VIC-SMPPT30
Brand Victron
Shipping Weight 1.3500kg
Shipping Width 0.210m
Shipping Height 0.094m
Shipping Length 0.133m
Shipping Cubic 0.002625420m3
Unit Of Measure ea
