ULTIMATE BATTERY PROTECTION FOR YOUR ADVENTURES

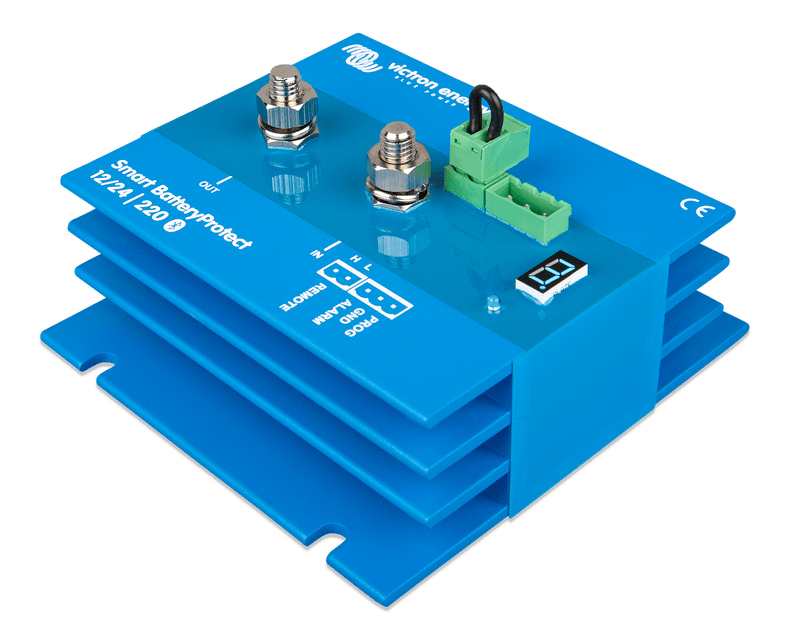

Take your off-grid adventures to new heights with the Victron Smart Battery Protect - 220 Amp. This device ensures your battery's longevity by safeguarding it against excessive discharge and over-voltage while maintaining seamless power flow.

The Smart Battery Protect offers auto-ranging for 12/24 V systems and hassle-free Bluetooth programming, allowing you to set precise engage and disengage levels directly from your smartphone. Imagine embarking on a cross-country road trip, confident in knowing your battery is protected, and your power is uninterrupted, leaving you free to explore with peace of mind.



EXCESSIVE DISCHARGE PROTECTION

This feature helps prevent battery damage by automatically disconnecting non-essential loads before the battery is completely depleted. By doing so, it ensures that your battery maintains its longevity and efficiency, saving you from potential costly replacements.



BLUETOOTH ENABLED

With Bluetooth capabilities, you can easily program and monitor your system using the VictronConnect app. This user-friendly application makes it convenient to oversee the performance and settings of your system from any compatible device.



ULTRA-LOW CURRENT CONSUMPTION

The ultra-low current consumption feature is particularly beneficial for preserving battery life in Li-ion setups. Even during shutdowns, this capability ensures that minimal energy is consumed, thereby extending the overall lifespan of your battery.



OVER VOLTAGE PROTECTION

This feature protects sensitive devices from the risks associated with potential over-voltage damage. By regulating the voltage levels, it safeguards your equipment, enhancing the durability and reliability of your entire system.



IGNITION PROOF DESIGN

The ignition-proof design utilizes MOSFET switches, which eliminate sparks and ensure safe operation. This design aspect not only enhances safety but also adds a layer of security, providing peace of mind during use.



WHATS IN THE BOX

  • 1 x Victron Smart Battery Protect - 220 Amp
  • Preassembled DC minus cable
  • Excessive Discharge Protection: Prevents battery damage by disconnecting non-essential loads before depletion.
  • Bluetooth Enabled: Easily program and monitor your system with the VictronConnect app.
  • Ultra-Low Current Consumption: Ideal for preserving battery life in Li-ion setups even during shutdowns.
  • Over Voltage Protection: Shields sensitive devices from potential over-voltage damage.
  • Ignition Proof Design: Utilizing MOSFET switches, eliminating sparks and ensuring safety.

VICTRON BATTERY PROTECT

Model Smart BP-220 BP 48-100
Maximum continuous load current* 220A 100A
Peak current (during 30 seconds) 600A 250A
Operating voltage range 6-35V 24-64V
Current consumption BLE On When on: 1.4mA  When off or low voltage shutdown: 0.9mA When on: 2mA When off or low voltage shutdown: 1.5mA
BLE Off When on: 1.2mA  When off or low voltage shutdown: 0.7mA
Alarm output delay 12 seconds
Maximum load on alarm output 50mA (short circuit proof)
Load disconnect delay 90 seconds (immediate if triggered by the VE.Bus BMS)
Load reconnect delay 30 seconds
Default thresholds Disengage: 10.5V or 21V Engage: 12V or 24V Disengage: 42V Engage 48V
Operating temperature range Full load: -40oC to +40oC (up to 60% of nominal load at 50oC)
IP rating Electronics: IP67 (potted) Connections: IP00
Connection M8
Mounting Torque 9Nm
Weight 0.8kg 1.8lbs
Dimensions (HxWxD mm) 60 x 123 x 121 60 x 123 x 120
* The BatteryProtect is not designed for reverse currents from charging sources





Specifications

SKU V-BP-220
Brand Victron
