ALL IN ONE, BLUETOOTH BATTERY MONITOR WITH DIGITAL DISPLAY



The BMV-712 is Victrons latest evolution of their ever popular BMV range of battery monitors. The BMV-712 has the added benefit of integrated Victron Smart technology; which implements Bluetooth (as in many other Victron Energy products) – giving wireless communication between various products.

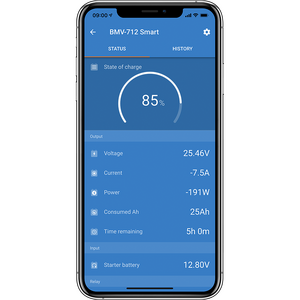

Victron Smart technology simplifies system setup, monitoring and firmware updates using the free VictronConnect app.

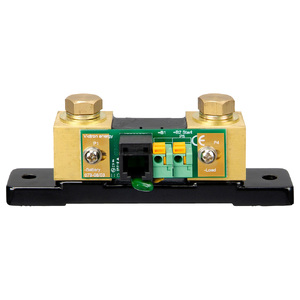

The shunt is equipped with a VE.Direct port and a connection that can be used for: monitoring a second battery, midpoint monitoring or a temperature sensor.

*For VictronConnect settings, go to the FAQ tab  under "What settings do I need for a lithium battery?"



WHATS IN THE BOX

  • 1 x Victron BMV-712 Grey Battery Monitor with Bluetooth
  • 10 meter 6 core UTP with RJ12 connectors, and cable with 1Amp slow blow fuse for ‘+’ connection

5 YEAR MANUFACTURERS WARRANTY
30 DAY MONEY BACK GUARANTEE

  • Bluetooth compatible - monitor via your smart device using VictronConnect

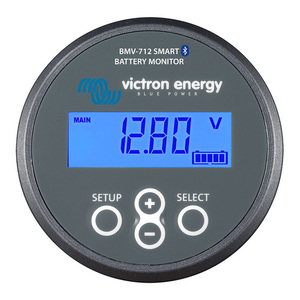

  • Digital Display - monitor all important information easily
  • View historical data - kept for up to 46 days
  • Monitor your battery - measures battery voltage and current, calculates state of charge and time to go
  • GX Device compatible via a DE direct cable

PRODUCT SPECIFICATIONS - VICTRON BMV-712

SKU VICT-BMV712 / VICT-BMV712B
Supply voltage range (VDC) 6.5 - 70
Current Draw <1mA
Input voltage range, auxillary battery (VDC) 6.5 - 70
Battery capacity (Ah) 1 - 9999
Operating Temperature Range (oC) -40 to 50
Measures coltage of second battery, or temperature, or midpoint Yes
Temperature measurement range (oC) -20 to 50
VE. Direct communication Port Yes
Bistable Relay  60V / 1A normally open (function can be inverted)
Resolution and Accuracy
Current (A) ±0.01
Voltage (V) ±0.01
Amp hours (Ah) ±0.1
State of charge (0-100%) (%) ±0.1
Time to go (min) ±1
Temperature (oC) ±1 (0-50)
Accuracy of current measurement (%) ±0.4
Installation & Dimensions
Installation Flush Mount
Front 63mm diameter
Front bezel  69 x 69mm
Shunt connection bolts M10
Body diameter and depth 52 mm (2.0 inch) and 31 mm (1.2 inch)
Protection Category IP55 (not intended for outdoor use)
Standards
Safety EN 60335-1
Emission / Immunity  EN 55014-1 / EN 55014-2
Automotive ECE R10-4 / EN 50498
Accessories
Shunt (included) 500 A / 50 mV
Cables (included) 10 meter 6 core UTP with RJ12 connectors, and cable with 1Amp slow blow fuse for ‘+’ connection
Temperature sensor Optional (ASS000100000)
Stored Trends
Data Stored Battery voltage, current, state of charge % as well as the Aux input (Battery temperature, or midpoint deviation, or starter battery voltage)
Number of days trends data is stored 46



Specifications

SKU VICT-BMV712
Brand Victron
Shipping Weight 1.1000kg
Shipping Width 0.233m
Shipping Height 0.070m
Shipping Length 0.250m
Shipping Cubic 0.004077500m3
Unit Of Measure ea

Download

Brochure

What settings do I need for a lithium battery?

The "Battery Capacity" section is variable depending on what size battery you have, but all other settings should be as displayed in the photo, unless advised otherwise.

If you have any questions about the setup or need help with the app, please give us a call on 08 6205 6868.


Battery capacity  set to your capacity
Charged voltage  14.1V or 14.2 if using solar
Discharge floor  10 - 20% recommended
Tail current  3%
Peukert's exponent  1.05
Charge efficiency factor 96%
Relay not required (leave as default settings)
Alarms

We set at 12.5V and clear at 13V and 20% SoC

clear at 30% (leave high voltage/soc turned off)

SOC ON RESET

We recommend setting to reset to current state if charge

So if you flatten your battery the shunt will start back at zero not full
