VICTRON'S SOLUTION FOR LARGE SYSTEMS



The SmartSolar MPPT RS solar charge controllers are Victron's solution for systems with large series connected PV arrays charging 48 V DC battery banks. This product is perfect for large off-grid, and grid connected battery systems.



Features include a wide 65-450 VDC operating solar voltage input, independent tracking inputs, full connectivity, isolated PV connections, display screen, fully programmable battery charging parameters and active cooling. The new metal case design and fully covered electrical connections improve the safety and modernise the presentation in line with the latest suite of Victron products.



MPPT: ULTRA FAST MAXIMUM POWER POINT TRACKING

The SmartSolar RS solar charge controller connects to a PV array of between 65 and 450 Volt Voc and will efficiently charge your 48V battery bank with 100A.



The charge settings are fully programmable and can be set up for different battery chemistries, like lead-acid, lithium and more.



VICTRON CONNECT

The SmartSolar RS charge controller can be remotely controlled and configured over Bluetooth via the VictronConnect app. This allows device set-up, management, and at-a-glance information, such as battery voltage and current, PV voltage and current, historical data and trends.



DAISY CHAIN



The SmartSolar RS charge controller is equipped with VE.Can bus ports. This allows for communication with additional SmartSolar RS & VE.Can MPPT units. The additional units are simply “daisy chained” to each other with an RJ45 cable.



When connected to each other, all individual charge controllers, will synchronise their charge stages. They can also send their data, via the same cable, for monitoring to a GX device (such as the Cerbo GX).



REMOTE MONITORING AND CONTROL

If the GX Device is connected to the internet, the Victron Remote Management Portal (VRM) provides access to the full power of your SmartSolar RS charge controllers.



If your installation is connected to a GX Device and the internet, VRM provides access to the full power of your MPPT, anytime, anywhere; for free.

For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the GlobalLink 520 (Contact us for pricing).



SMART SOLAR DISPLAY

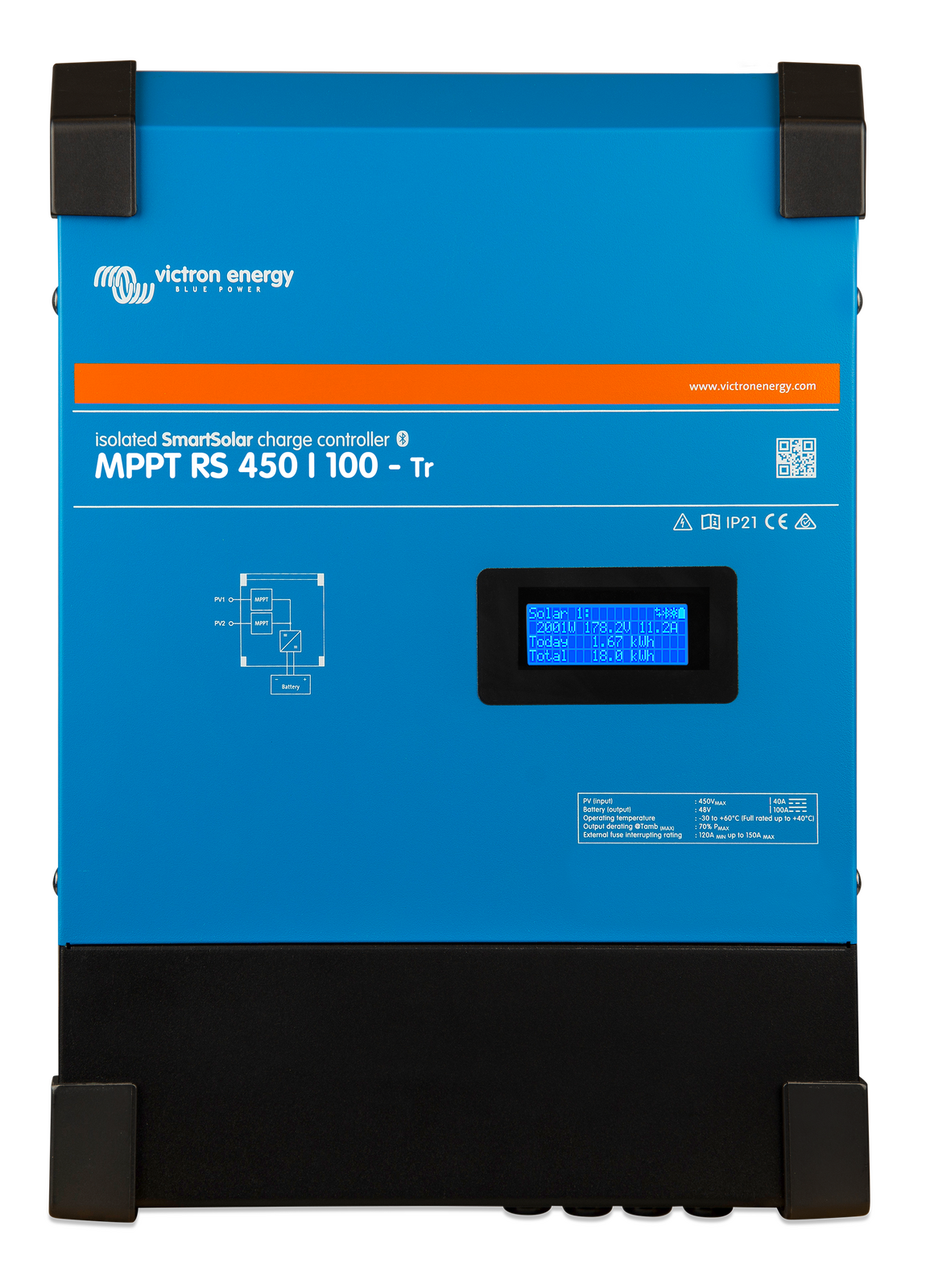

The SmartSolar RS charge controller is equipped with a display on the front panel. The display reads battery volts, charge current and voltages from both array’s individually including instantaneous and total figures and unit status including any possible error codes.



I/O CONNECTIONS

The SmartSolar RS charge controller is equipped with a programmable relay and options for remote temperature and voltage sensing. The remote input can accept the Victron smallBMS and other types of BMS with allow-to-charge signals.



WHATS IN THE BOX

  • 1 x Victron Smart Solar MPPT RS 450/100





  • MPPT Solar Charger - connects to a PV array to charge your 48V battery bank with 100A
  • Isolated PV connections - full galvanic isolation between PV and battery connections
  • Wide MPPT voltage range - 65 – 450 VDC PV operating range
  • Light weight, efficient and quiet - only 7.9kg
  • Digital Display - reads battery, and controller parameters
  • Bluetooth - set up and change settings via Victron Connect

PRODUCT SPECIFICATIONS - VICTRON SMART SOLAR RS

MODEL Victron Smart Solar MPPT RS 450/100
Battery voltage  48V
Rated charge current  100 A
Maximum charge power 5.8 kW at 57.6 V
Charge voltage 'absorption’ Default setting: 57,6 V (adjustable)
Charge voltage 'float'  Default setting: 55,2 V (adjustable)
Programmable voltage range  Minimum: 36 V   Maximum: 60 V (7)
Charge algorithm Multi-stage adaptive (adjustable)
Battery temperature sensor  Included
Maximum efficiency  96 %
Self-consumption  15 mA
SOLAR
Maximum DC PV voltage 450 V
Start-up voltage 120 V
MPPT operating voltage range  65 – 450 V (1)
Number of trackers
Max. PV operational input current  16 A per tracker
Max. PV short circuit current (2)  7200 Wp (450 V x 20 A) (3)
PV Isolation fail level (4)  100 kΩ
GENERAL
Synchronised Parallel Operation  Yes, up to 25 units with VE.Can
Programmable relay (5)  Yes
Protection  PV reverse polarity    Output short circuit    Over temperature
Data communication  VE.Direct port, VE.Can port & Bluetooth (6)
Bluetooth frequency  2402 – 2480 MHz
Bluetooth power 4dBm
General purpose analogue/digital in port  Yes, 2x
Remote on-off  Yes
Operating temperature range  -40 to +60 °C (fan assisted cooling)
Humidity (non-condensing)  max 95 %
ENCLOSURE
Material & Colour  steel, blue RAL 5012
Protection category  IP21

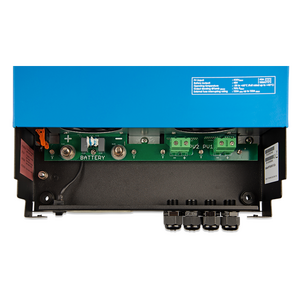

Battery-connection M8 bolts
Power terminals PV input (-Tr version)  16 mm2
Power terminals PV input (MC4 version)  1 pair of male and female MC4 connectors per tracker
Weight 7.9 kg
Dimensions (h x w x d) in mm  440 x 313 x 126
STANDARDS
Safety EN-IEC 62109-1, EN-IEC 62109-2
Country of Origin  Designed in The Netherlands      Made in India



Specifications

SKU VIC-SSMPPT450100
Brand Victron
Shipping Weight 12.0000kg
Shipping Width 0.400m
Shipping Height 0.220m
Shipping Length 0.540m
Shipping Cubic 0.047520000m3

Download

DATASHEET
