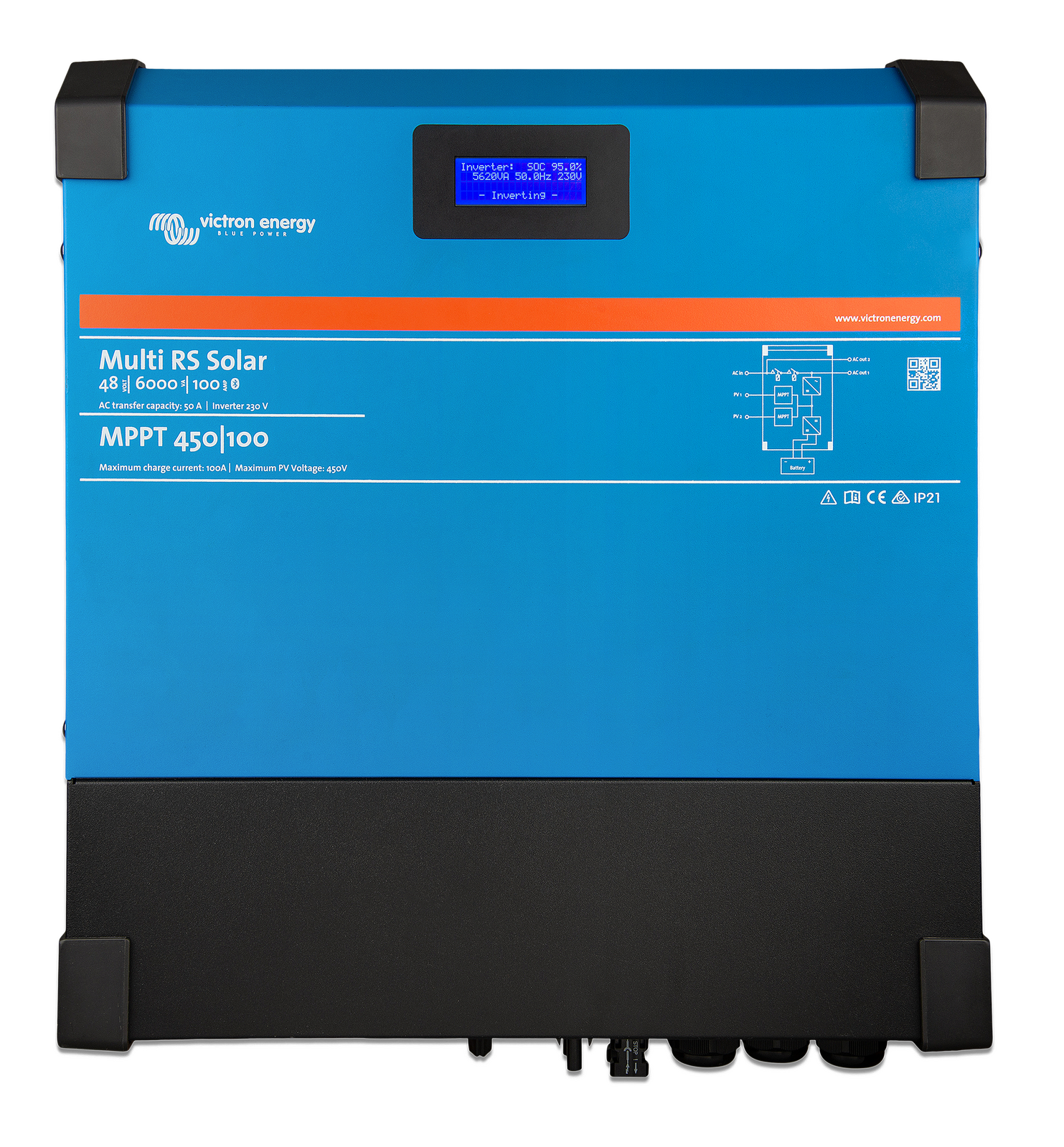

VICTRON'S HYBRID INVERTER/CHARGER



The Multi RS Solar 48/6000 is a 48V 6kVA Inverter/Charger with two independent 3kWp PV 450V MPPT tracker inputs for 6kWp PV total.



Thanks to high frequency technology and a new design this powerful inverter weighs only 11kg. In addition to this it has an excellent efficiency, low standby power, and a very quiet operation.



The display reads battery, inverter and solar parameters. The same parameters can be accessed with a smartphone or other Bluetooth enabled device, using the VictronConnect app.



In mid-2023 the Multi RS was revised from a single MPPT tracker to a dual MPPT



OPERATING MODES

Hybrid mode – Stores excess solar energy in a battery, to be used during the night or periods of high demand. Supplies additional power from the battery when demand exceeds grid capacity.

Backup mode – Switches to backup mode during a grid outage.

Off-grid mode – Operates without grid connection.

Generator mode – Controls the generator to minimize run-hours. Supplies additional power from the battery when demand exceeds the capacity of the generator.



POWER-CONTROL AND POWER-ASSIST

A maximum grid or generator current can be set. The Multi RS will then take account of other AC loads and use whatever is extra for battery charging, thus preventing the generator or grid from being overloaded (PowerControl function).



PowerAssist takes the principle of PowerControl to a further dimension. Where peak power is so often required only for a limited period, the Multi RS will compensate insufficient generator or grid power with power from the battery. When the load reduces, the spare power is used to recharge the battery.



DISPLAY, BLUETOOOTH AND VICTRON-CONNECT APP

The display reads battery, inverter and solar parameters. The same parameters can be accessed with a smartphone or other Bluetooth enabled device, using the VictronConnect app.



WHATS IN THE BOX

  • 1 x Victron Multi RS Solar 48/6000 Hybrid Inverter Dual Tracker
  • Multiple Operating Modes - Hybrid, Backup, Off-grid and Generator modes
  • PowerControl and Power Assist - prevents the generator or grid from being overloaded, whilst also compensating insufficient generator or grid power with power from the battery
  • Display/Bluetooth - reads battery, inverter and solar parameters (can also be accessed through bluetooth)
  • Extendable PV capacity - both AC-coupled and DC-coupled
  • Communication Ports - ability to connect to a GX device and GlobalLink520

PRODUCT SPECIFICATIONS - MULTI-RS SOLAR 48/6000 DUAL TRACKER

MODEL Multi RS Solar 48/6000 Dual Tracker
PowerControl & PowerAssist  Yes
Transfer switch  50 A
Maximum AC input and pass-through current  50 A
INVERTER
DC Input voltage range (1)  38 – 62 V
AC Output (2)

Output voltage: 230 VAC ± 2 %

Frequency: 50 Hz ± 0,1 %

Maximum continuous inverter current: 25 Aac

Continuous output power at 25 °C  Increases linearly from 4800 W at 46 VDC to 5300 W at 52 VDC
Continuous output power at 40 °C  4500 W
Continuous output power at 65 °C  3000 W
Peak power (3)

9 kW for 3 seconds

7 kW for 4 minutes

Short-circuit output current  45 A
Max. AC output overcurrent protection  30 A
Efficiency

96.5 % at 1 kW load

94 % at 5 kW load

Zero load power consumption  20 W
Low Battery shutdown  37.2 V (adjustable)
Low battery restart  43.6 V (adjustable)
SOLAR
Maximum open circuit PV array voltage (4)  450 V
Start-up voltage  120 V
MPPT operating voltage range  65 – 450 V
Maximum operational PV input current limit  13 A
Maximum PV conversion power  6 kW total – 3 kW per tracker
Maximum PV short circuit current   16 A
Earth leakage trip level  30 mA
Isolation fail level (detection before start-up)  100 kΩ
CHARGER
AC Input

Nominal Voltage: 230 VAC, Input voltage range: 187-265 VAC

Nominal frequency: 50 Hz, Input frequency: 45-65 Hz

AC inrush current: NA

Programmable charge voltage range (5)  36 – 60 V
Charge voltage 'absorption'  Default setting: 57.6 V (adjustable)
Charge voltage 'float'  Default setting: 55.2 V (adjustable)
Maximum charge current from AC (6) Default setting: 55,2 V (adjustable)
Total maximum charge current (AC + PV)  100 A DC
Battery temperature sensor  Included
Battery voltage sense  Yes
GENERAL
Auxiliary output (AC-out-2) (7)  Yes
3-phase and parallel operation  3-phase support with one unit per phase. Parallel not supported.
Programmable relay (8)  Yes
Protections (9) a - g
Data communications ports (10)  VE.Direct, VE.Can & Bluetooth
Bluetooth frequency & power  2402 - 2480 Mhz, 4 dBm
Programmable analog/digital input/output ports  Yes, 2x
Remote on-off  Yes
Operating temperature range  -40 to +65 °C (fan assisted cooling)
Maximum altitude  2000 m
Humidity (non-condensing)  max 95 %
ENCLOSURE
Material & Colour  steel, blue RAL 5012
Protection category  IP21 Protective Class: I
Battery-connection  M8 bolts
PV Connection  2 strings, each with positive and negative MC4
230 VAC-connection  Screw terminals 10 mm² (6 AWG)
Weight  12.3 kg
Dimensions (hxwxd)  425 x 460 x 125 mm
STANDARDS
Safety  EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2
Emission, Immunity  EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2,  IEC 61000-6-3, Pollution Degree 2
Overvoltage Category  Battery: OVC 1, PV port: OVC II, AC in / AC out: OVC III

1) Minimum start-up voltage is 41 VDC. Over-voltage disconnect: 65,5 V.

2) Can be adjusted to 240 VAC and 60 Hz

3) Peak power capacity and duration depends on start temperature of heatsink.  Mentioned times are with cold unit.

4) The maximum PV voltage should not exceed 8x battery float voltage.  If for example the float voltage of the battery is 50 V,  the maximum PV voltage should not exceed 8 x 50 = 400 V.

5) The Charger set points (float & absorption) can be set to max 60 V.  The output voltage at the charger terminals can be higher due to compensation  for temperature & voltage drop over the battery cables.  The maximum output current is reduced on a linear basis from full current at 60 V to  5 A at 62 V. The equalization voltage can be set to max 62 V, the equalization current  percentage can be set to max 6 %.

6) The maximum charge current from AC sources depends on input voltage and battery current. At 230V input and 57.6V battery voltage, and 25C ambient, the maximum charge current is 88 A. See manual, limitations section, for further details.

7) AC-out-2 is connected directly to the AC input and intended for non-critical loads. The AC-out-2 load is taken into account by PowerControl & PowerAssist.

8) Programmable relay which can be set for general alarm, DC under voltage or genset start/stop function. DC rating: 4 A up to 35 VDC and 1 A up to 70 VDC

9) Protection key: a) output short circuit    b) overload    c) battery voltage too high    d) battery voltage too low   e) temperature too high     f) 230 VAC on inverter output    g) solar earth leakage.

10) Not currently compatible with VE.Smart Networks. Connection to a GX device (i.e. Cerbo GX) must be made via the VE.Can interface. The VE.Direct interface is for connection to the GlobalLink 520.



Specifications

SKU VIC-MULTIRS48V6000W
Brand Victron
Shipping Weight 15.2000kg
Shipping Width 0.495m
Shipping Height 0.240m
Shipping Length 0.570m
Shipping Cubic 0.067716000m3
Unit Of Measure ea
