NEXT-GENERATION PORTABLE SOLAR SOLUTION FOR OFF-GRID POWER



The AllSpark 250W Solar Blanket is the Ultimate portable solar solution for powering your 12V setup. Engineered with cutting-edge Shingle Cell technology and premium Japanese ETFE laminate, this solar blanket delivers unmatched performance, durability, and efficiency in even the most challenging conditions.



Compact, lightweight, and versatile, the AllSpark 250W Solar Blanket is perfect for off-road adventures, camping trips, or remote workstations. With integrated legs and tie-down eyelets, you can position the blanket for optimal sun exposure and secure it against high winds. Whether you’re recharging your batteries or running essential appliances, this solar blanket is designed to exceed expectations.



PREMIUM MATERIALS FOR LONG-LASTING PERFORMANCE

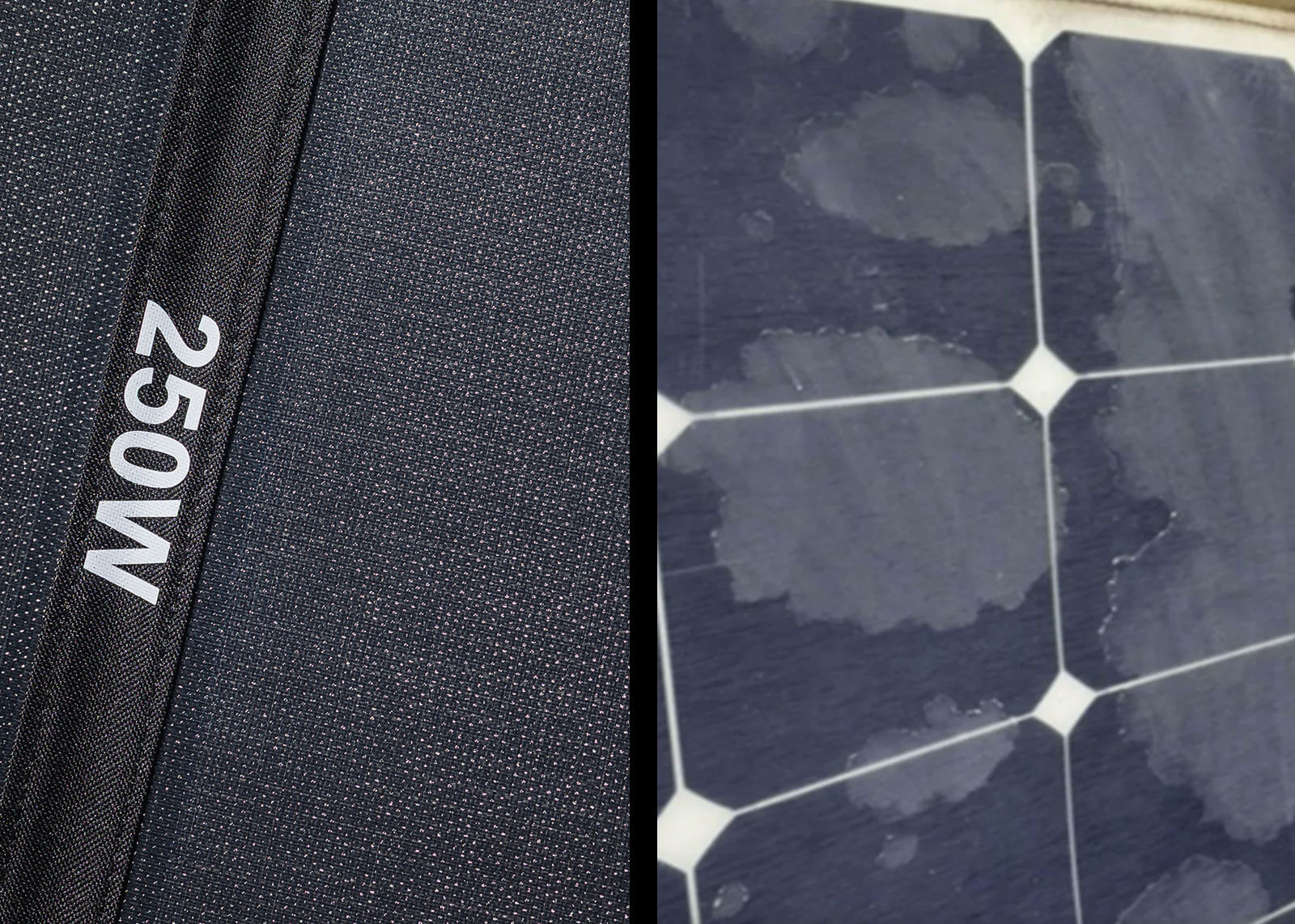

The AllSpark Solar Blanket is constructed with premium Japanese ETFE laminate, which ensures UV resistance for over 25 years while remaining water, dirt, and salt-resistant. Unlike cheaper PET plastics, ETFE guarantees the blanket won't corrode, discolor, or blister, even in harsh environments.



NEXT-GENERATION DESIGN AND FUNCTIONALITY

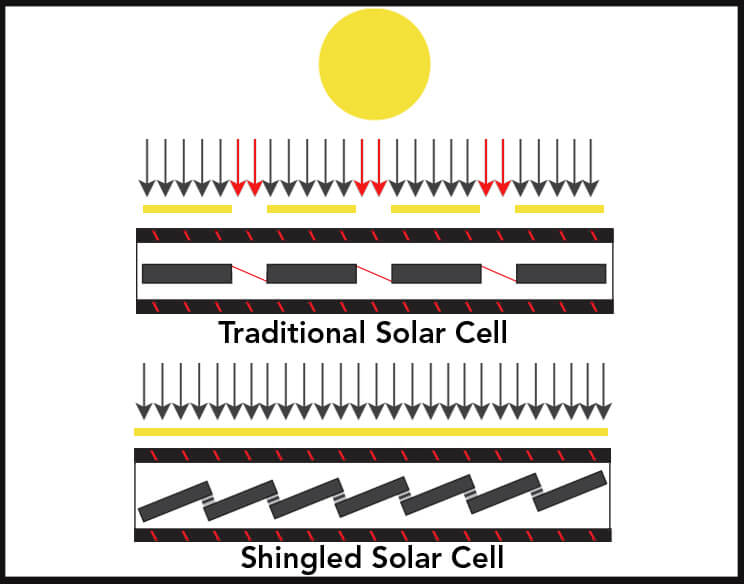

With its shingle cell technology and advanced componsite polymer backing materials, this blanket offers superior shade tolerance and protection against cell damage. The included heavy-gauge 5m cable prevents voltage drop, ensuring efficient power delivery to your system.

This blanket is also diode protected unlike most blanket products on the market.



WHATS IN THE BOX:

  • 1 x AllSpark 250W Solar Blanket
  • 1 x Heavy-Gauge 5m Cable
  • Integrated Legs with Tie-Down Loops

3 YEAR MANUFACTURERS REPLACEMENT WARRANTY
30 DAY MONEY BACK GUARANTEE

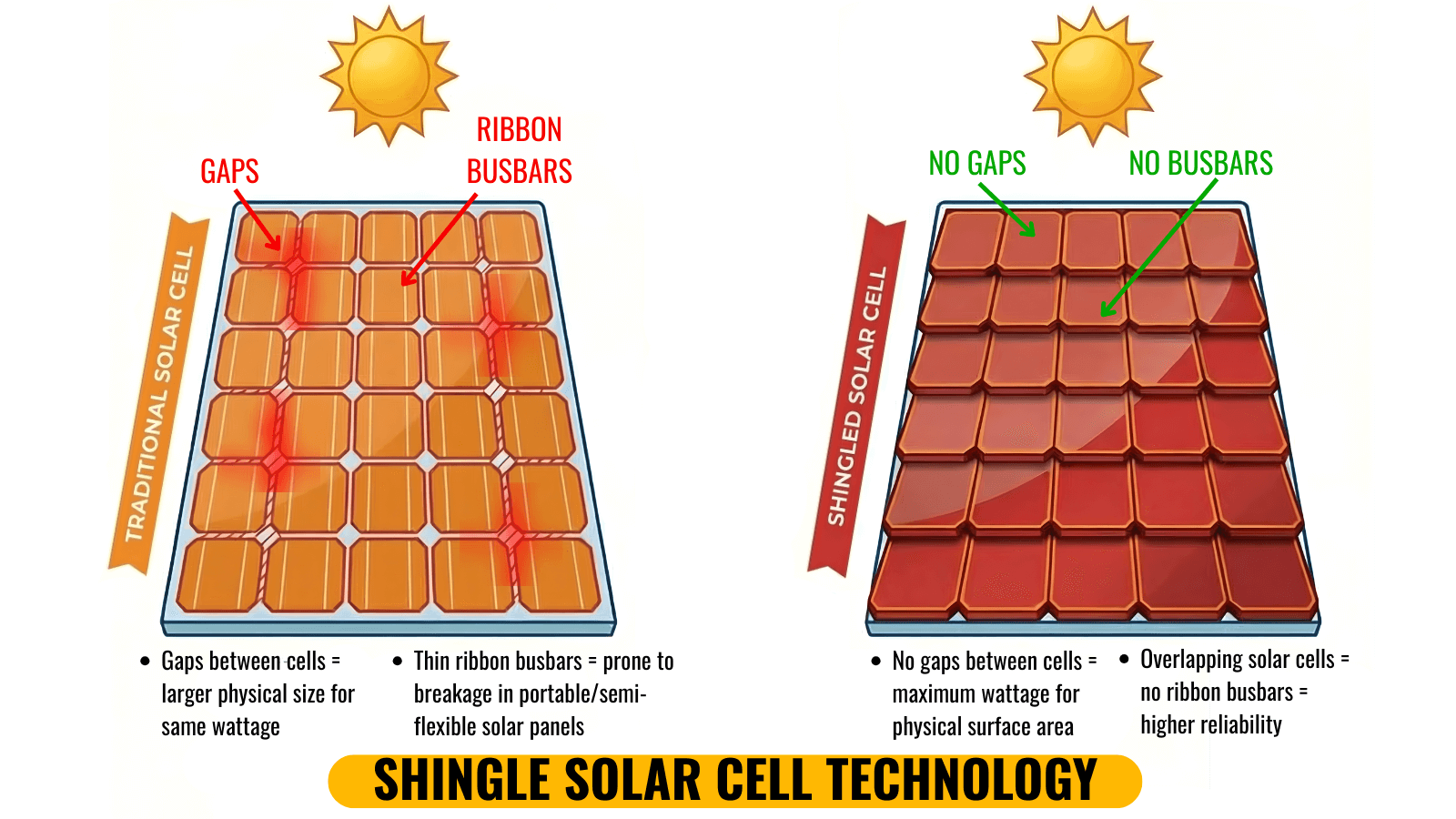

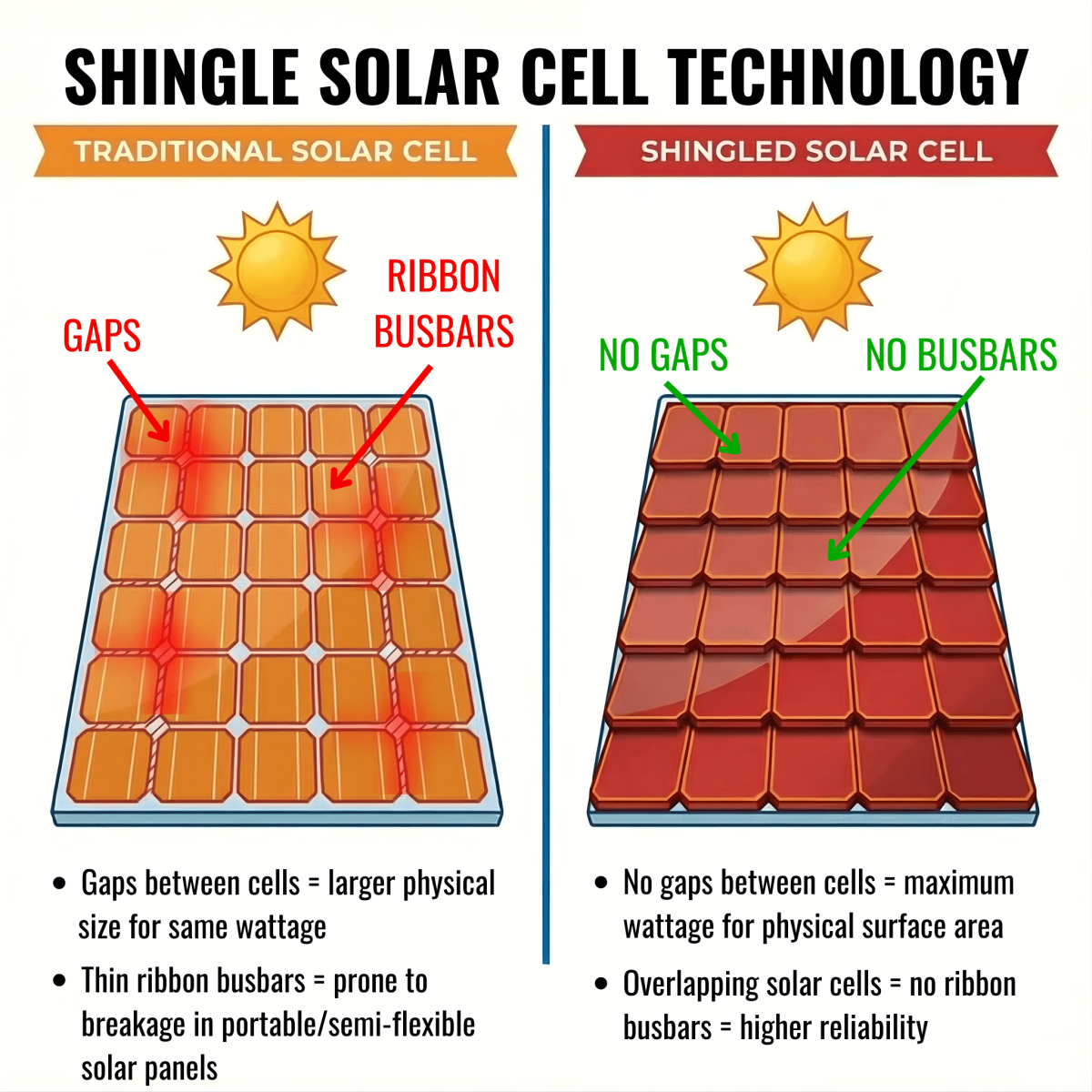

  • Next-Generation Shingle Cell Technology: Delivers superior efficiency and shade tolerance compared to traditional panels
  • Premium Japanese ETFE Laminate: UV-resistant for 25+ years, water, dirt, and salt-resistant for exceptional durability
  • Advanced Polymer Backing Panels: Provides next-level protection against cell damage
  • Integrated Legs with Tie-Down Eyelets: Enables freestanding setup with the option to secure in high winds
  • Heavy-Gauge 5m Cable: Prevents voltage drop for reliable power delivery
  • Compact and Lightweight Design: Easy to transport and store, ideal for mobile setups
  • Tiedowns on each panel: Allows versatile mounting options for optimal sun exposure in windy conditions

PRODUCT SPECIFICATIONS - ALLSPARK SOLAR BLANKETS

AS-250SPBL
No. of Panels  5
Folded Size (mm HxWxD) 630 x 470 x 30 (60 for pocket)
Open Size (mm HxWxD) 630 x 2620 x 4
Net Weight (kg) 6.5kg
Max. Power Voltage (V) 22.8
Max. Power Current (A) 10.97
Open Circuit Voltage (V) 26.9
Short Circuit Current (A) 11.62
Maximum System Voltage (V) 100V DC
Power Temperature Co-efficient -0.38%/℃
Voltage temperature Co-efficient -0.36%/℃
Current temperature Co-efficient -0.07%/℃
Output power tolerance ±5%
Operating Temperature -10℃~80℃
Cell type Shingle Cell Monocrystalline
No. of Cells 200 (2 x 20 x 5)
Output cable AllSpark 50A Anderson plug
Output Junction Box 1 x Blocking Diode
Waterproof IP Rating IP53

Specifications

SKU AS-250SPBL
Brand AllSpark
Unit Of Measure ea

Why doesn't it come with a charger as standard?

Many people are now choosing to use DCDC chargers in lieu of the standard solar controller so their batteries remain topped up whilst driving. Because of this, we have chosen not to include a charger as standard because it is an unnecessary additional built-in cost for those who do not require one.

Most blankets on the market that come standard with a solar controller are using a cheap, throw away unit that can limit the output of the panels. A good quality solar controller is essential to get the most our of solar cells.



Is 5m of cable long enough? What if I wanted a longer cable?

5m is generally enough for most people to run from their van/tent/vehicle (which may be in the shade) out to the sun. However, if you believe you will need a longer cable we have the AllSpark 5M Extension Cables available over here



Can I mount this to my roof whilst driving?

No. Blankets are built to be lightweight, therefore the fibreglass backing board is not sufficient to support the cells in the extreme wind conditions created by a vehicle going at speed. The cells will vibrate in the wind, creating micro-cracks, which can reduce the efficiency (and therefore output) of the panel.
