THIN, LIGHT WEIGHT, COMPACT DESIGN MADE TO LAST



AllSpark Solar Blankets are manufactured to the highest specifications, using premium grade materials including genuine SunPower Maxeon 3 premium grade cells.



With a minimum 24.4% efficiency, these cells are the highest efficiency cells on the market, meaning more power for it's size than other brands. These blankets also have the highest shade and temperature tolerance of any panel, meaning they will perform in the harshest of Australian conditions.


All solar cells reduce efficiency (and therefore power output) with increased heat, therefore laying a blanket flat on the ground or over a bonnet/windscreen is not recommended as there is no air flow between the cells and the surface. Each AllSpark Solar Blanket panel has integrated legs with eyelets, allowing it to be free standing with the additional use of tent pegs in high wind situations, whilst also allowing you to hang the blanket off the ground, from a roof rack, tree or the like, for the best angle in late afternoon/morning.

AllSpark Solar Blankets use premium ETFE Laminate, not cheap PET plastics, ensuring the blanket will not corrode, discolour or blister - ETFE is UV stable for 25 years!



Comes with a 5 YEAR MANUFACTURERS WARRANTY!



WHATS IN THE BOX

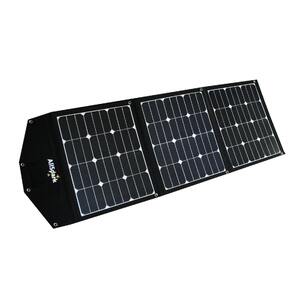

  • 1 x AllSpark 135W Solar Blanket
  • 1 x 5m Anderson to Anderson cable

5 YEAR MANUFACTURERS REPLACEMENT WARRANTY!
30 DAY MONEY BACK GUARANTEE!

  • SunPower Maxeon 3 Cells - (>24.4% efficiency) highest efficiency cells on the market
  • Highest shade and temperature tolerance - outperforms any other panel
  • Premium Japanese ETFE Laminate - UV Resistant for 25+ years and water/dirt/salt resistant
  • Heavy gauge cable - 5m 10B&S cable ensures no voltage drop
  • Five year warranty on Blanket

PRODUCT SPECIFICATIONS - ALLSPARK FOLDING SOLAR PANELS

SKU AS-135SPBLG1 AS-180SPBLG1LV AS-225SPBLG1
Panels 3 4 5
Folded Size (H x W x D mm) 560 x 440 x 20 560 x 440 x 25 560 x 440 x 30
Open Size (H x W x D mm) 560 x 1525 x 5 560 x 1975 x 5 560 x 2435 x 5
Net Weight (kg) 5.3 5.21 6.41
Max. Power Voltage (V) 22.3 19.8
Max. Power Current (A) 6.05 9.09 11.36
Open Circuit Voltage (V) 26.3 23.3
Short Circuit Current (A) 6.41 9.64 12.04
Warranty 5 Years



Specifications

SKU AS-135SPBLG1
Barcode # 0745178224154
Brand AllSpark
Shipping Weight 5.2500kg
Shipping Width 0.610m
Shipping Height 0.070m
Shipping Length 0.470m
Shipping Cubic 0.020069000m3

Q: My panel isn't producing the maximum output, why is this?

A: On any given day, the amount of power produced by your panel will depend on the radiation received by the sun. Check out below and see up to date solar Radiaton output - This will give a clearer indication on how much your solar panels or blanket should produce on a given day

Weather Station - Solar radiation realtime
