POWERFUL AND RELIABLE SOLAR PERFECT FOR YOUR 4WD ROOF RACK ALL IN ONE KIT



Need Solar on the roof  of your 4wd but don't know what parts to purchase?

Well look no further.

This 4wd roof top kit provideseverything you need to add 200w of solar to your roof, including an MPPT solar controller, connectors, brackets, terminations, cables and circuit protection.

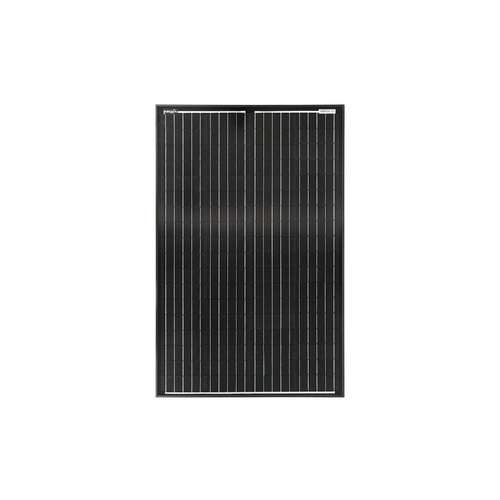

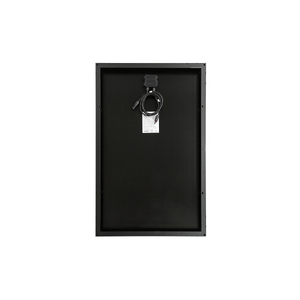

2 x AllSpark 100W Glass Solar Panel: The Allspark Glass Solar Panel range are a high quality, efficient and durable option for those in need of solar power with their impressive features and 10 YEAR MANUFACTURERS WARRANTY, they will provide reliable and long-asting solar power for years to come.

Check out the AllSpark 100W Glass Solar Panel here



Victron Smart Solar MPPT 75/15: This MPPT solar panel charge controller has in-built BlueTooth functionality so that you can control and monitor it's features via the Victron Connect App.

Check out the Victron Smart Solar MPPT 75/15 here



*** SPECIAL NOTE - This is a box of parts only.  It does not come with an ikea style set of instructions and does require some 12v installation knowledge to install these parts however, we have provided simplified instructions below to assist your installation ***



WHATS IN THE BOX



INSTALLATION INSTRUCTIONS:

  1. Mount MPPT close to battery - keep cable length under 1m in length.
  2. If you have a battery monitor shunt, the MPPT Battery negative connection goes to the load side (L-) of the shunt (06-10 lug), if not, then connect to battery negative terminal (06-08 lug).
  3. Circuit breaker (20A) must be installed within 30cm of the battery positive terminal.  Use 6mm cable and 06-06 lugs on the circuit breaker terminals.
  4. Boot lace pins are supplied for the 6mm auto cable - these are the cable terminations for the battery and PV connections into the MPPT solar controller and also for the input/output connections to the Solar Isolator.
  5. Mount the Solar isolator into the mounting housing - connect 6mm cable into isolator (kept in the isolated position until ready for energisation) using the bootlace pins.  This is marked with Positive and Negative terminals
  6. Pre-check the required length of your cable between solar isolator and solar panel connections - cut cable to required length, then fit braided sleeve.  Tape of heat shrink ends of braid on cable.
  7. Plug the positive solar panel plugs (2 x male MC4 plugs) from each solar panel into the 2 into 1 MC4 branch connector.
  8. Plug the the negative solar panel plugs (2 x female MC4 plugs) from each solar panel into the 2 into 1 MC4 branch connector.
  9. Crimp or solder the loose pair of 6mm2 MC4 plugs onto the 6mm auto cable at solar end of cable.  The female MC4 plug goes onto the red cable from the controller to match the existing male plug on the solar 2 into 1 branch connector.  The male MC4 plug goes on the black cable to match the female plug on the 2 into 1 branch connector.  Make sure you double check the plugs are on the correct cable before you crimp or plug these in - if you get it wrong, it will mean cutting off and needing new plugs.
  10. Fit Solar panel brackets to solar panels - the brackets are pre-drilled and are supplied with black large flange rivets.  If mounting on a flatform style rack the panels and brackets can sit flat on the rack.  You will need to drill matching holes in the solar panel frames to fix the brackets.
  11. Once all connected - reset circuit breaker to battery connection and energise the solar isolator.
  12. Program MPPT solar controller for your selected battery type and voltage requirements - for AllSpark LiFePO4 batteries, see the FAQ's in this listing for details
  • 2 X 100W AllSpark Solar Panel with A Grade Monocrystalline cells - minimum 22.4% efficiency meaning more power for their size compared to other glass panel brands
  • Excellent temperature tolerance outperforming other glass panels in high temperature conditions.
  • Made with high optical quality glass optimizing light transmission to the cells
  • Victron MPPT Smart Solar with in-built BlueTooth functionality so you can monitor from your phone
  • AllSpark 20A Circuit Breaker - waterproof with push-to-trip function
  • Installation materials - everything you need to install a powerful and reliable roof top solar system

PRODUCT SPECIFICATIONS - GLASS SOLAR PANELS

SKU AS-100SPGLG2 AS-135SPGLG2 AS-200SPGLG2 AS-135SPGL-24 AS-180SPGL-24 AS-200SPGL-24
Maximum power (Pmax) 100W 135W 200W 135W 180W 200W
Open-circuit voltage (Voc) 24.0V 48.0V 48.9V 48.0V
Voltage at Pmax (Vmp) 20.5V 41.0V 41.8V 41.0V
Short-circuit current (Isc) 5.12A 6.91A 10.24A 3.46A 4.52A 5.12A
Current at Pmax (Imp) 4.88A 6.59A 9.76A 3.30A 4.31A 4.88A
Cells Efficiency (%) 22.4% 22.7% 22.4%
The maximum system voltage 1000V DC(IEC)
Power temperature coefficient -0.38%/oC -0.35%/oC -0.38%/oC
Voltage temperature coefficient -0.36%/oC -0.275%/oC -0.36%/oC
Current temperature coefficient 0.07%/oC 0.045%/oC 0.07%/oC
Output power tolerance ±3%
Operating Temperature -40oC~85oC
DImensions (LxWxH mm) 1030 x 520 x 30 1040 x 680 x 35 1500 x 680 x 35 1040 x 680 x 35 1180 x 770 x 35 1520 x 680 x 35
Weight (kg) 6.2 8.0 10.94 8.0 10.1 10.94
Output cable 2 x diodes + 900mm/4mm2 cable + MC4 compatible
Approvals IP65
Certifications CE, ROHS, FCC, TUV, UL
Warranty 10 Yrs (Service Life 25 Years)



PRODUCT SPECIFICATIONS - VICTRON MPPT SMART SOLAR

SKU R.VIC-SMPPT10 R.VIC-SMPPT15 R.VIC-SMPPT20 R.VIC-SMPPT30 R.VIC-SMPPT50
Model 75/10 75/15 100/20 100/30 100/50
Battery Voltage (auto select) 12/24 V 12/24/48V 12/24 V
Rated Charge (A) 10A 15A 20 A 30A 50A
Nominal PV 12V 1a,b) 145 W 220 W  290 W 440W 700W
Nominal PV 24V 1a,b) 290 W  440 W  580 W 880W 1400W
Nominal PV 48V 1a,b) N/A  1160 W  N/A
Max. PV short circuit current   2)  13 A  15 A  20 A  35A 60A
Max. PV open circuit voltage  75 V  100 V
Peak efficiency  98 %
Self-consumption – load on 12 V: 19 mA      24 V: 16 mA  26 / 20 / 19 mA  12 V: 30 mA      24 V: 20 mA
Charge voltage 'absorption'  14,4 V / 28,8 V (adjustable) 14,4 V / 28,8 V / 57,6 V (adj.)  Default setting: 14,4 V / 28,8 V (adjustable)
Charge voltage 'float'  13,8 V / 27,6 V (adjustable)  13,8 V / 27,6 V / 55,2 V (adj.)  Default setting: 13,8 V / 27,6 V (adjustable)
Charge algorithm   multi-stage adaptive
Temperature compensation  -16 mV / °C resp. -32 mV / °C
Protection  Output short circuit / Over temperature PV reverse polarity / Output short circuit / Over temperature
Operating temperature  -30 to +60 °C (full rated output up to 40 °C)
Humidity 95 %, non-condensing
Data communication port  VE.Direct (see the data communication white paper on Victron website)
ENCLOSURE
Power terminals  6 mm² / AWG10  16 mm² / AWG6
Protection category  IP43 (electronic components), IP22 (connection area)
Weight (kg) 0.5 0.65 1.3
Dimensions (h x w x d)  100 x 113 x 40 mm  100 x 131 x 60 mm  130 x 186 x 70 mm
STORED TRENDS
Data stored  Battery voltage,current and temperature, as well as load output current, PV voltage and PV current.
Number of days trends data is stored  46





Specifications

SKU AS-RTSOLARKIT200W
Brand AllSpark

Q: How should I program the Victron MPPT for this setup?

A: The following screens shots provide details of the required settings for AllSpark Lithium Iron Phosphate batteries. If you have other batteries, you will need to find the matching voltage and chemistry profiles appropriate for your battery

  1. Enter the Victron App and select the 75/15 device
  2. Go to Settings and in the drop down next to Battery preset - choose "Select Pre-set"
  3. Scroll to the bottom and choose "Smart Lithium - LiFePO4"
  4. Turn on Expert mode button by swiping to the right
  5. Set Absorption voltage to "14.6V"
  6. Set Float voltage to "13.6V"
  7. Change Absorption duration to "Adaptive"
  8. Low Temperature cut-off change to "zero C"
