A COMPACT AND FLEXIBLE POWER SOLUTION FOR YOUR CARAVAN, CAMPER OR 4WD



RedVision by REDARC provides an unprecedented level of control and automation to your 4x4, caravan, camper, RV or work vehicle. Control accessories such as lights, fridges, TVs and inverters via the physical screen or your Bluetooth connected mobile device.



MONITOR

When combined with the RedVision screen and Manager30 battery management system (sold separately), the TVMS Prime provides real time and accurate state of charge, power input/output and ambient temperature information.



Six dedicated tank level sensor inputs and two ambient temperature inputs make the Prime RedVision System the all-seeing eye of your power set up.



CONTROL

The Prime RedVision system allows complete control of multiple on-board devices including lights, fans, fridges, inverters, and pumps.



Its 10 output channels include 5x 30A and 5x 10A channels, perfect for controlling a mix of low and high-powered devices. With a max current of 80A, you’ll never be limited to how many devices you can run at once. A dedicated inverter channel brings the total number of channels to 11.



Take control outside with the connected Bluetooth app or use the included RedVision display.



AUTOMATION

Save time and energy by using RedVision to automate those mundane tasks. With the press of a button, switch off everything except for your fridge or power down non-essential loads when your batteries are running low.

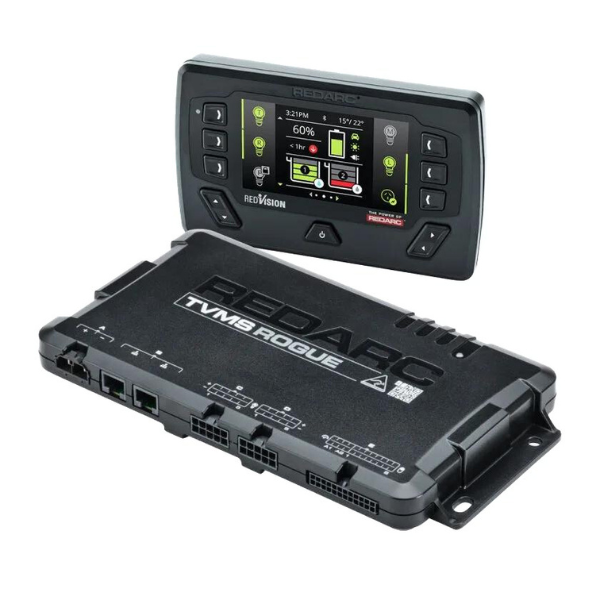

For the complete RedVision solution, pair your TVMS Rogue with the Manager30 battery management system.



FEATURES:

  • 5x 30A outputs
  • 5x 10A outputs
  • 80A maximum current
  • 6x tank sensor inputs
  • 2x temp sensor inputs
  • 1x voltage sensor input
  • 1x dedicated inverter output
  • Easy accessible fuses
  • Fully programmable



WHATS IN THE BOX

  • 1 x Redarc TVMS Prime Module
  • 1 x RedArc RedVision Display Module

2 YEAR REDARC WARRANTY

  • 5x 30A outputs and 5x 10A outputs
  • 80A maximum current
  • 6x tank sensor inputs
  • 2x temp sensor inputs
  • 1x voltage sensor input
  • 1x dedicated inverter output
  • Fully programmable

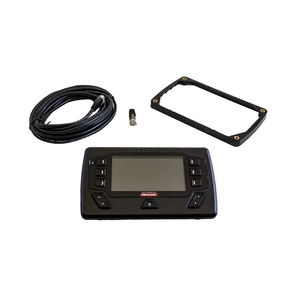

PRODUCT SPECIFICATIONS - REDARC REDVISION DISPLAY

SKU DISP4300-RC
Operating temperature –40° to 75°C
Storage temperature –40° to 85°C
Weight 312g
Dimensions 178 x 109 x 25mm

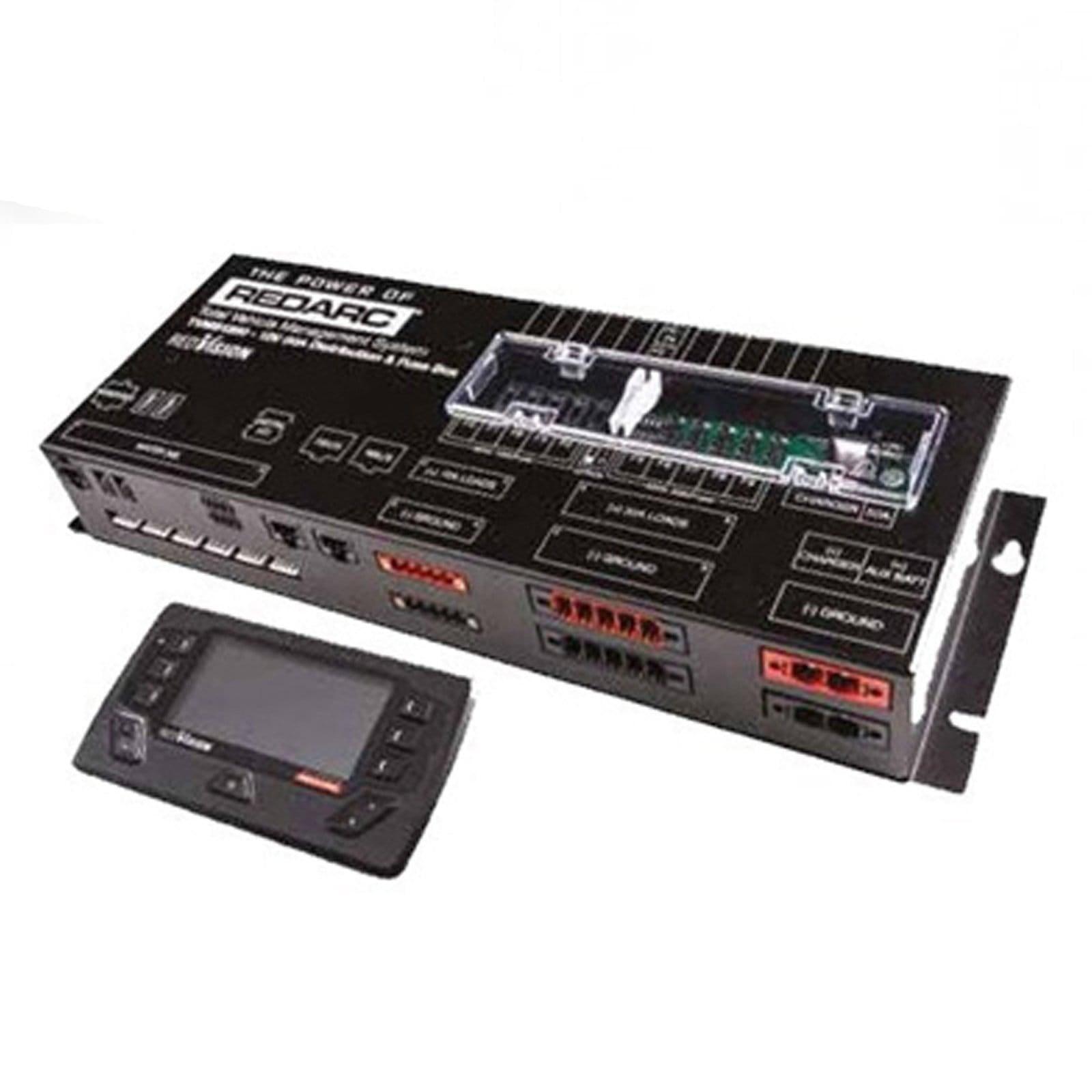

PRODUCT SPECIFICATIONS - REDARC TVMS PRIME 1280

SKU TVMS1280
System Voltage 12V
Maximum Charger Current 40A
Maximium Battery Current 80A
No. Switched Circuits 5 x 10A Max, 5 x 30A Max
Operating Temperature –20° to 60°C
Storage Temperature –40° to 85°C
Dimensions (L x W x D) 385 × 138 × 58 mm
Weight 2kg



Specifications

SKU TVMS1280
Brand REDARC

Download

How do I set up the RedVision configurator app?

Download the guide here.



How do I configure the RedVision display?

Download the guide here.



How do I configure the RedVision distribution box?

Download the guide here.



How do I conifgure the Manager 30 with the RedVision?

Download the guide here.
