POWER YOUR DOMESTIC EQUIPMENT OFFGRID

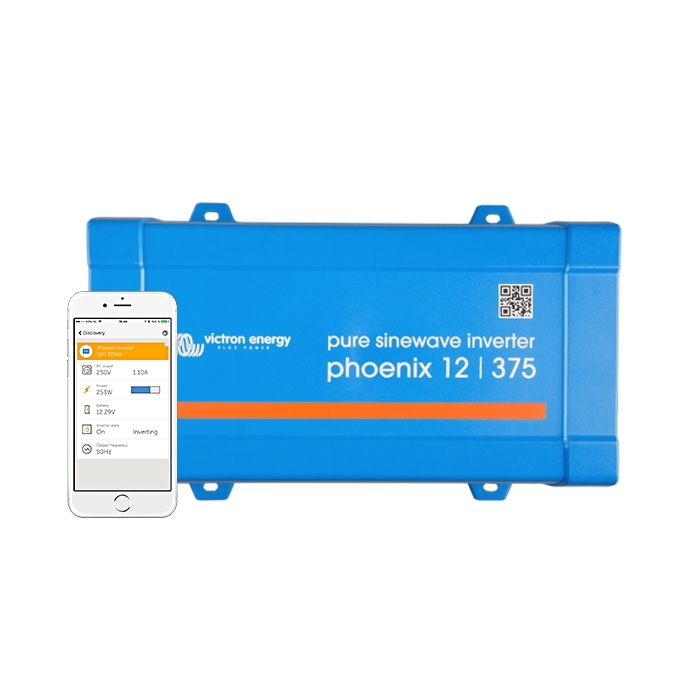

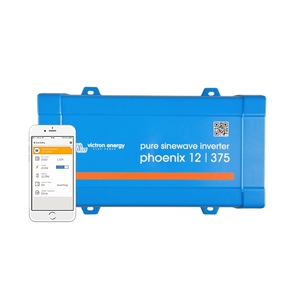

The VICTRON 12V 375VA Phoenix VE.Direct Inverter is a durable pure sine wave inverter, for mobile and stationery use. It has a VE.Direct connector outlet, so that users can attached Victron monitor, control and communications tools, to monitor power use, even remotely. Or VE.direct can be attached to a computer via a separate VE.Direct to USB cable, to configure functions and outputs. Comes with 230V AC AU power outlet.



VE. DIRECT COMMUNICATION PORT

The VE.Direct port can be connected to:

  • A computer (VE.Direct to USB interface cable needed)
  • Apple and Android smartphones, tablets, MacBook’s and other devices (VE.Direct Bluetooth Smart dongle needed)



FULLY CONFIGURABLE

  • Low battery voltage alarm trip and reset levels
  • Low battery voltage cut-off and restart levels
  • Dynamic cut-off: load dependent cut-off level
  • Output voltage 210 - 245V
  • Frequency 50 Hz or 60 Hz
  • ECO mode on/off and ECO mode sense level



MONITORING

 Fully cominitoring of in- and output voltage, % load and alarms.



PROVEN RELIABILITY

The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.



HIGH START-UP POWER

Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.



ECO MODE

When in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.



REMOTE ON/OFF

A remote on/off switch can be connected to a two-pole connector, or between battery plus and the left-hand contact of the two-pole connector.



WHATS IN THE BOX

  • 1 x VICTRON 12V 375VA 300W Phoenix VE.Direct Inverter
  • Extra Startup power
  • Eco mode
  • LED status indicator
  • Remote On/Off switch
  • 9.2 – 17 V DC Input voltage
  • 89% efficiency

PRODUCT SPECIFICATIONS - VICTRON 12V 375VA 300W PHOENIX INVERTER

MODEL 12V 375VA 12V 500VA
Cont. power at 25°C   (1)  375VA  500VA
Cont. power at 25°C / 40°C  300 / 260W  400 / 350W
Peak power   700W  900W
Output AC voltage / frequency (adjustable)  230VAC or 120VAC  +/- 3%    50Hz or 60Hz +/- 0,1%
Input voltage range (V) 9.2 - 17
DC low shut down (adjustable) (V) 9.3
Dynamic (load dependent) DC low shut down  (fully configurable)  Dynamic cut-off, see here
DC low restart and alarm (adjustable)    10.9
Battery charged detect (adjustable)  14
Max. efficiency (%) 89 90
Zero-load power (W) 5.6 6
Default zero-load power in ECO mode (default retry interval: 2,5 s, adjustable) 0 (W) 0.9 1
ECO mode stop and start power setting Adjustable
Protection  (2)  a - f
Operating temperature range

-40 to +65°C (fan assisted cooling)

Derate 1.25% per °C above 40°C

Humidity (non-condensing) (%) max 95
ENCLOSURE
Material & Colour  Steel chassis and plastic cover  (blue Ral 5012)
Battery-connection  Screw terminals
Maximum cable cross-section  10mm² / AWG8
Standard AC outlets  230V: Schuko (CEE 7/4), IEC-320 (male plug included) UK (BS 1363), AU/NZ (AS/NZS 3112) 120V: Nema 5-15R, GFCI
Protection category  IP 21
Weight (kg) 3.0 3.9
Dimensions 86 x 165 x 260  86 x 172 x 275
ACCESSORIES
Remote on-off  Yes
Automatic transfer switch  Filax
STANDARDS
Safety EN-IEC 60335-1 / EN-IEC 62109-1 / UL 458 (3)
EMC EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3
Automotive Directive  ECE R10-4

1) Nonlinear load, crest factor 3:1

2) Protection key: a) output short circuit; b) overload; c) battery voltage too high; d) battery voltage too low; e) temperature too high; f) DC ripple too high

3) UL 458 only for inverters with GFCI output socket

Specifications

SKU PIN121371300
Brand Victron
Shipping Width 0.260m
Shipping Height 0.086m
Shipping Length 0.165m
Shipping Cubic 0.003689400m3
