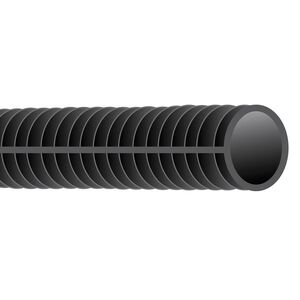

Corrugated Split Tubing 13mm

CABLE, CONDUITS AND LUG SIZING CHART

AWG/B&S Twin Core Single Core Copper Diameter (mm) per core Surface Area (mm2) per core Lug size (mm2)
Current Rating (Amps) Circuit Protection Max (Amps) Conduit Size (mm) Heat Shrink (mm) Current Rating (Amps) Circuit Protection Max (Amps) Conduit Size (mm) Heat Shrink (mm)
Without Conduit With Conduit Without Conduit With Conduit
2mm Auto Industry Equivalent 12 7.5 5 5 10 N/A 1.1 0.56 Red crimps
3mm Auto Industry Equivalent 16 10 5 5 10 20 15 5 2.5 10 1.40 1.13 Red/Blue crimps
4mm Auto Industry Equivalent 22 15 7 7 10 28 25 5 2.5 10 1.30 1.84 Blue crimps
6mm Auto Industry Equivalent 38 30 10 10 13 48 40 7 5 10 3.10 4.59 Yellow crimp/6mm lug
8 B&S 59 50 13 13 20 74 60 7 7 10 3.70 7.71 10
6 B&S 82 70 16 16 25 103 80 7 10 10 5.00 13.50 16
4 B&S 108 100 20 20 25 135 100 10 10 13 6.10 20.26 25
2 B&S Single core only 188 150 13 13 20 7.90 32.07 35
0 B&S 246 200 13 16 20 9.30 49.00 50
00 B&S 292 250 16 16 25 11.10 64.15 70
000 B&S 335 300 16 20 25 12.40 83.19 95
This cable chart is provided for information purposes only. It is based on the published information for Tycab Australia Automotive cables which we use soley.

Specifications

SKU SPLIT13MM
Brand AllSpark
Shipping Weight 0.0200kg
Shipping Width 0.100m
Shipping Height 0.030m
Shipping Length 0.030m
Shipping Cubic 0.000090000m3
Unit Of Measure m
