ALL IN ONE, BLUETOOTH BATTERY MONITOR



The Smart Shunt is an all-in-one battery monitor, only without a display. Your phone acts as a display.

The Smart Shunt connects via Bluetooth to the Victron Connect App on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more. Alternatively, the Smart Shunt can be connected and be read by a GX device. Connection to the Smart Shunt is made via a VE.Direct cable.

The Smart Shunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted. The Smart Shunt is equipped with Bluetooth, a VE.Direct port and a connection that can be used for: monitoring a second battery, midpoint monitoring or a temperature sensor.



The Smart Shunt is available in 300A, 500A, 1000A and 2000A.



WHATS IN THE BOX

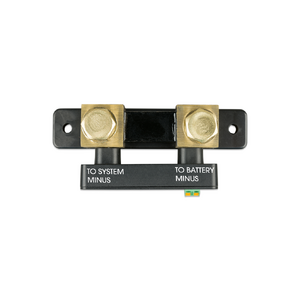

  • 1 x Victron Smart Shunt 300A Bluetooth Battery Monitor

PRODUCT SPECIFICATIONS - VICTRON 300A SMART SHUNT with Bluetooth

SKU SHU050130050

Supply Voltage Range

6.5-70V DC

Current Draw

< 1mA

Input Voltage Range, Auxiliary Battery

6.5-70V DC

Battery Capacity (Ah)

1 - 9999Ah

Operating Temperature Range

-40 +50°C

Temperature Measurement Range

-20 +50°C

VE.Direct Communication Port

Yes

Resolution & Accuracy

Current

± 0.01 A

Volatge

± 0.01 V

Amp Hours

± 0.1 Ah

State of Charge (0-100%)

± 0.1%

Temperature (if an optional temperature sensor is connected)

± 1 °C  (0 – 50 °C)

Accuracy of Current Measurement

± 0.4%

Accuracy of Voltage Measurement

± 0.3%

Offset

Less than 20mA

Installation & Dimensions

Protection Category

IP21

Shunt Connection Bolts

M8

Dimensions

44 x 120 x 44mm

Specifications

SKU SHU050130050
Barcode # 8719076065708
Brand Victron
Shipping Weight 0.2000kg
Shipping Width 0.050m
Shipping Height 0.010m
Shipping Length 0.165m
Shipping Cubic 0.000082000m3

Download

Q: What settings do I need for a lithium battery?

A: The "Battery Capacity" section is variable depending on what size battery you have, but all other settings should be as displayed in the photo, unless advised otherwise.

If you have any questions about the setup or need help with the app, please give us a call on 08 6205 6868.


Battery Settings
Battery capacity  Set to your batteries capacity
Charged voltage  14.1V
Discharge floor  0% recommended
Tail current  3%
Charged detection time 3 min
Peukert's exponent  1.05
Charge efficiency factor 96%
Current Threshold 0.10A
Time to go averaging period 3 min
Battery SOC on reset

"Keep SOC:

So if you flatten your battery the shunt will start back at zero % on reset rather than full.

Alarms
Alarms

Low SoC:

Set - 20%

Cear - 30%
Low voltage:

Set - 12.52V

Clear - 12.8V

(leave high voltage & starter alarms turned off)

Misc
Monitor mode Battery monitor
Aux Input If not connecting voltage sense wire to start battery, then change to "None"
VE Smart Networking
If you have multiple Victron Smart devices, create a network on the Battery monitor, then add each smart device to the created network.
