ALL IN ONE, WATERPROOF BLUETOOTH BATTERY MONITOR

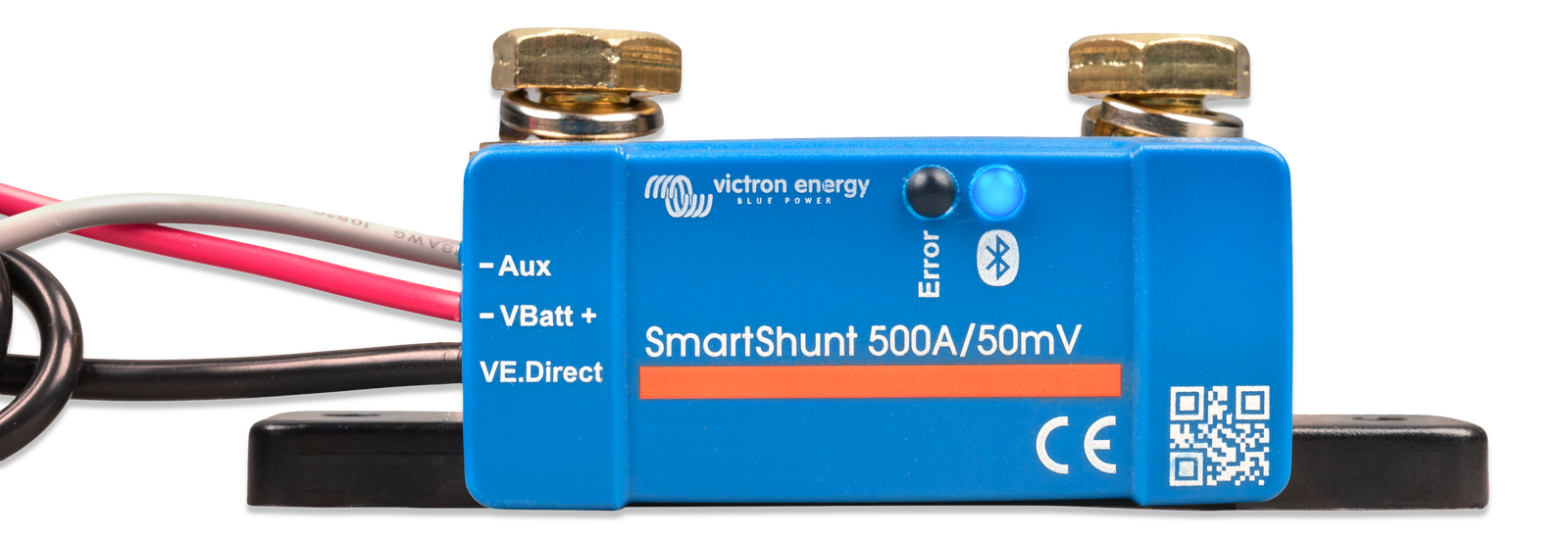

The Victron IP65 SmartShunt is an all in one battery monitor, only without a display. Your phone acts as the display.

The IP65 SmartShunt connects via Bluetooth to the VictronConnect App on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more.

Alternatively the SmartShunt can be connected and be read by a GX device. Connection to the SmartShunt is made via a VE.Direct cable.

The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted.

The SmartShunt is equipped with Bluetooth, a VE.Direct port and a connection that can be used for: monitoring a second battery, midpoint monitoring or a temperature sensor.



WHATS IN THE BOX

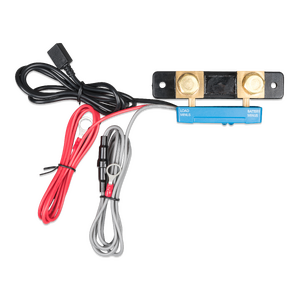

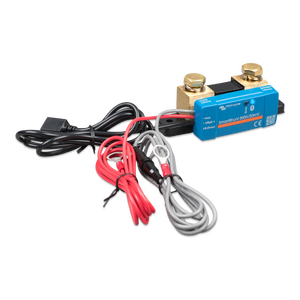

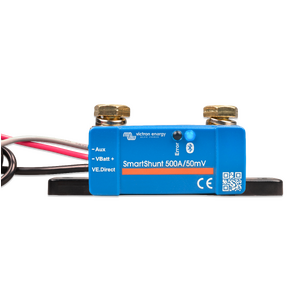

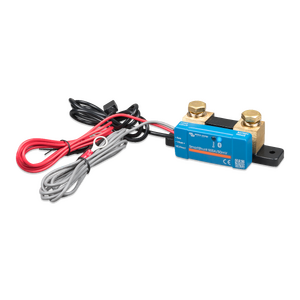

  • 1 x Victron Smart Shunt 500A IP65 Battery Monitor
  • Bluetooth compatible - monitor via your smart device using VictronConnect
  • IP65 Waterproof - able to be installed externally
  • View historical data - kept for up to 45 days
  • Monitor your battery - measures battery voltage and current, calculates state of charge and time to go
  • GX Device compatible via a DE direct cable

PRODUCT SPECIFICATIONS - VICTRON SMART SHUNTS

SKU M.VIC-BMVSH500  M.VIC-BMVSH1000 VIC-IP65SS
Supply voltage range (VDC) 6.5 - 70
Current Draw <1mA
Input voltage range, auxillary battery (VDC) 6.5 - 70
Battery capacity (Ah) 1 - 9999
Operating Temperature Range (oC) -40 to 50
Measures coltage of second battery, or temperature, or midpoint Yes
Temperature measurement range (oC) -20 to 50
VE. Direct communication Port Yes
Resolution and Accuracy
Current (A) ±0.01
Voltage (V) ±0.01
Amp hours (Ah) ±0.01
State of charge (0-100%) (%) ±0.01
Time to go (min) ±1
Temperature (if optional temperature sensor connected) (oC) ±1 (0-50)
Accuracy of current measurement (%) ±0.4
Offset (mA) Less than 20 Less than 40 Less than 20
Accuracy of voltage measurement (%) ±0.3
Dimensions (H x W x D mm) 46 x 120 x 54 68 x 168 x 75 46 x 120 x 54
Shunt connection bolts M10
Protection category IP21 IP65
Stored Trends
Data Stored Battery voltage, current, state of charge % as well as the Aux input (Battery temperature, or midpoint deviation, or starter battery voltage)
Number of days trends data is stored 46



Specifications

SKU VIC-IP65SS
Brand Victron
Shipping Weight 0.4870kg
Shipping Width 0.150m
Shipping Height 0.070m
Shipping Length 0.090m
Shipping Cubic 0.000945000m3
Unit Of Measure ea

Download

What settings do I use for a lithium battery?

The "Battery Capacity" section is variable depending on what size battery you have, but all other settings should be as displayed in the image below, unless advised otherwise.

If you have any questions about the setup or need help with the app, please give us a call on 08 6205 6868.

Battery capacity - to match the installed battery
Charged voltage - 14.1V for alternator/mains only or 14.2V if using solar
Discharge floor - to have the monitor calculate your state of charge based on the full battery capacity, use 0%. If you want it to calculate SoC % based on say 80% utilisation, then set this at 20% instead.
Tail current - 3%
Peukert's exponent - 1.05
Charge efficiency factor - 96%
Relay - not required (leave as default settings)
Alarms - subject to user preference. We set at 12.5V and clear at 13V and 20% SoC and clear at 30% (leave high voltage/soc turned off)

All others stay as is.
