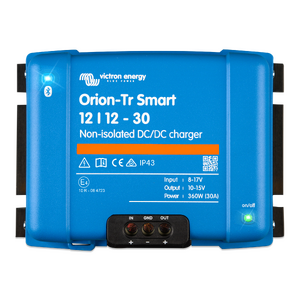

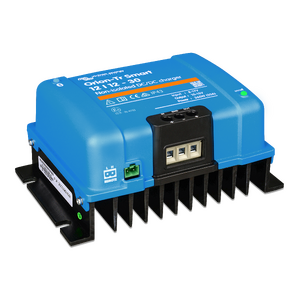

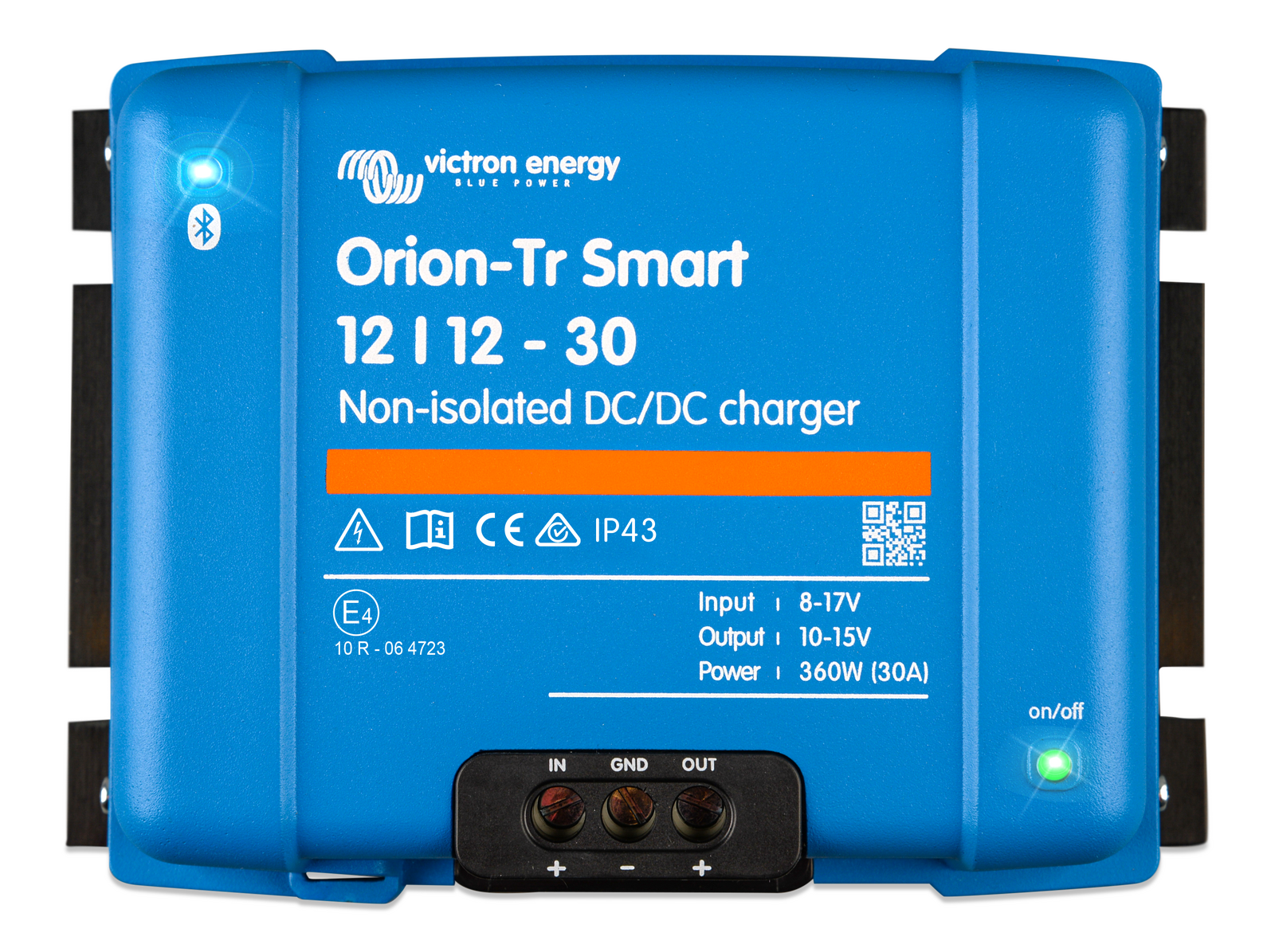

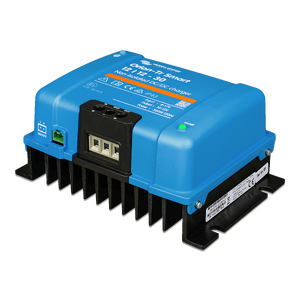

A PROFESSIONAL DC TO DC CHARGER WITH BUILT-IN BLUETOOTH



The Orion-Tr Smart non-isolated DC-DC charger serves as a DC-DC battery charger or as a power supply (it is also designed for use as a constant voltage source), offering a wide input and output voltage range. This is especially significant in the case of vehicles with a Euro 5 or Euro 6 smart alternator, which often supplies too low charging voltage even when the engine is running or when extended cable lengths, as is often the case in boats and RVs, lead to voltage drops. In such scenarios, precise and controlled charging is imperative to fully charge the service battery while protecting the starter/input battery from discharge.



BLUETOOTH SMART ENABLED

  • Any Bluetooth enabled smart phone, tablet or other device can be used to monitor, to change settings and to update the charger when new software features become available.
  • Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the Device list page without the need to connect to the product.



FULLY PROGRAMMABLE

  • Battery charge algorithm (configurable) or fixed output.
  • Smart alternator compatibility: engine running detection mechanism.



ADAPTIVE 3-STAGE CHARGE ALGORITHM: BULK - ABSORPTION - FLOAT

  • For lead acid batteries it is important that during shallow discharges the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery is completely recharged.
  • For lithium batteries absorption time is fixed, default 2 hours.
  • Alternatively, a fixed output voltage can be chosen.



REMOTE ON/OFF

A remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example).



FEATURES

  • All models are short-circuit proof and can be paralleled to increase output current - an unlimited number of units can be connected in parallel.
  • High temperature protected - the output current will reduce at high ambient temperature.
  • IP43 protection - when installed with the screw terminals oriented downwards.
  • Screw terminals
  • No special tools needed for installation
  • Input fuse (not replaceable)



WHATS IN THE BOX

  • 1 x Orion-Tr Smart 12/12-30A (360W) Non-isolated DC-DC charger

5 YEAR MANUFACTURERS WARRANTY



  • Bluetooth enabled - monitor on your smart phone or tablet using the Victron Connect App
  • Fully Programmable
  • Adaptive 3-stage algorithm - bulk, absorption, float
  • Remote on/off
  • Short-circuit proof
  • Can be paralleled - to increase output
  • IP43 Protection - when installed with screw terminals down

PRODUCT SPECIFICATIONS - VICTRON ORION DCDC NON-ISOLATED

MODEL Victron Orion-Tr Smart 12/12-30A Victron Orion-Tr Smart 12/24-15A Victron Orion-Tr Smart 24/24-17A
Input voltage range 10-17 V 20-35V
Under voltage shut down  7 V 14V
Under voltage restart  7.5V 15V
Nominal output voltage 12.2V 24.2V
Output voltage adjust range 10-15 V 20-30 V
Output voltage tolerance +/- 0.2 V
Output noise  2 mV rms
Cont. output current at nominal output voltage and 40 °C 30A 15A 17A
Max. output current (10 s) at nominal output voltage minus 20 % 40A 25A
Short circuit output current 60A 40A
Cont. output power at 25 °C 430W 480W
Cont. output power at 40 °C 360W 400W
Efficiency 87% 88% 89%
No load input current < 80 mA < 100 mA < 80 mA
Standby current Less than 1 mA
Can be used as power supply Yes, output voltage can be set with Bluetooth
Operating temperature range -20 to +55 °C   (derate 3 % per  °C above 40 °C)
Humidity Max. 95 % non-condensing
DC connection Screw terminals
Maximum cable cross-section 16 mm²   (AWG6)
Weight

12 V input and/or 12 V output models: 1,8 kg (3 lb)

Other models: 1,6 kg (3.5 lb)

Dimensions  (HxWxD)  130 x 186 x 80 mm  (5.1 x 7.3 x 3.2 inch)
Protection category IP43 (electronic components), IP22 (connection area)
Standards Safety EN 60950
Emission EN 61000-6-3, EN 55014-1
Immunity EN 61000-6-2, EN 61000-6-1, EN 55014-2
Automotive Directive ECE R10-5

1) If set to nominal or lower than nominal, the output voltage will remain stable within the specified input voltage range (buck-boost function). If the output voltage is set higher than nominal by a certain percentage, the minimum input voltage at which the output voltage remains stable (does not decrease) increases by the same percentage.

Note 1: The VictronConnect App will not display current in or current out.

Note 2: The Orion-Tr Smart is not equipped with a VE.Direct port.



Specifications

SKU ORI121236140
Brand Victron
Shipping Weight 1.9200kg
Shipping Width 0.250m
Shipping Height 0.130m
Shipping Length 0.090m
Shipping Cubic 0.002925000m3

Download

Q: What size circuit breakers do I need for installation?

A: You will need a 50A Circuit Breaker (or fuse) on the input, and 40A on the output
