EFFICIENT AND RELIABLE CHARGING FOR ANY BATTERY TYPE



Charge voltage can be precisely adjusted to suit any sealed or unsealed battery system. In particular, sealed maintenance free batteries must be charged correctly in order to ensure a long service life. Overvoltage will result in excessive gassing and venting of a sealed battery. The battery will dry out and fail.



Suitable for AC and DC supply (AC-DC and DC-DC operation)

The chargers also accept a DC supply.



Controlled charging

Every TG Charger has a microprocessor, which accurately controls the charging in three steps. The charging process takes place in accordance with the IUoUo characteristic and charges more rapidly than other processes.



Use of TG Chargers as a power supply

As a result of the perfectly stabilized output voltage, a TG Charger can be used as a power supply if batteries or large buffer capacitors are not available.



Two outputs to charge 2 battery banks (24V models only)

The TG Chargers feature 2 isolated outputs. The second output, limited to approximately 4A and with a slightly lower output voltage, is intended to top up a starter battery.



To increase battery life: temperature compensation

Every Skylla TG Charger comes with a battery temperature sensor. When connected, charge voltage will automatically decrease with increasing battery temperature. This feature is especially recommended for sealed batteries which otherwise might be overcharged and dry out due to venting.



Battery voltage sense

In order to compensate for voltage loss due to cable resistance, TG Chargers are provided with a voltage sense facility so that the battery always receives the correct charge voltage.



WHATS IN THE BOX

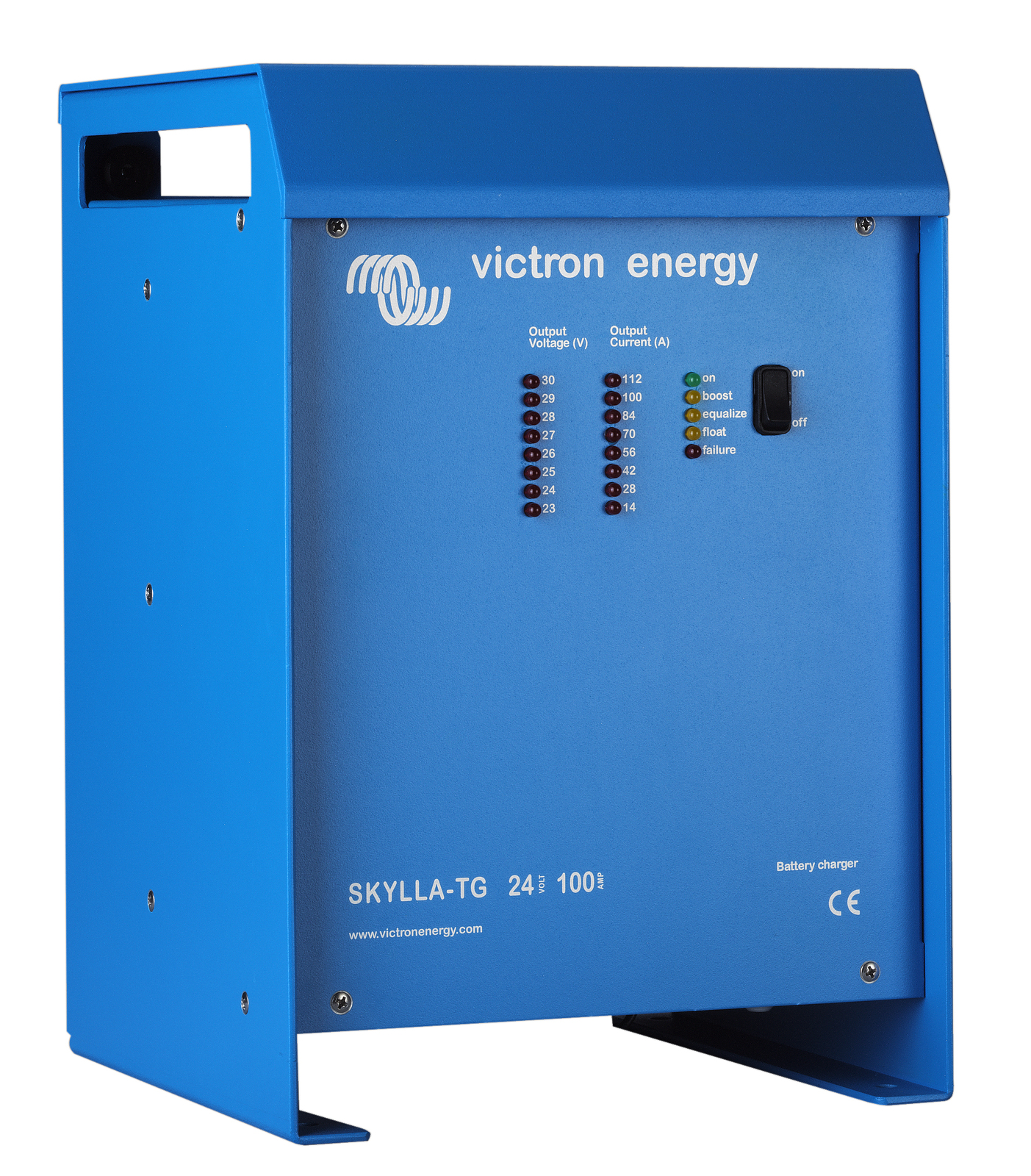

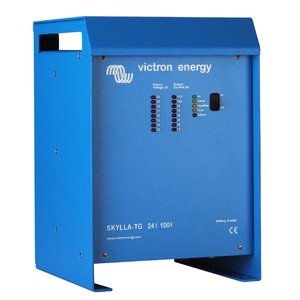

  • 1 x Victron Skylla- TG AC to DC Charger 24V 50A (1+1)



5 YEAR MANUFACTUERS WARRANTY

  • Suitable for all battery types - charge voltage can be precisely adjusted to suit any battery system
  • Suitable for AC and DC supply
  • Controlled charging - using three steps
  • Charge two battery banks - using two isolated outputs
  • Battery temperature compensation - comes with a battery temperature sensor

PRODUCT SPECIFICATIONS - VICTRON SKYLLA TG

MODEL  Skylla- TG 24V 50A (1+1)
SKU VIC-SKYLLATG2450
Input voltage (V AC)  230
Input voltage range (V AC)  185-264
Input voltage range (V DC)  180-400
Frequency (Hz)  45-65
Power factor  1
Charge voltage 'absorption' (V DC)  28.5
Charge voltage 'float' (V DC)  26.5
Charge current house batt. (A)   (2)  50
Charge current house batt.  at 110 VAC  (A)   (3)  30
Charge current starter batt. (A)
Charge characteristic  IUoUo (three step)
Battery capacity (Ah)  150-500
Temperature sensor  Yes
Can be used as power supply Yes
Remote alarm Potential free contacts 60V / 1A (1x NO and 1x NC)
Forced cooling  Yes
Protection   (1)  a,b,c,d
Operating temp. range  -40 to +50°C (-40 - 122°F)
Humidity (non-condensing)  max 95%
ENCLOSURE
Material & Colour  aluminium (blue RAL 5012)
Battery-connection  M8 studs
230 V AC-connection  screw-clamp 2,5 mm² (AWG 6)
Protection category IP 21
Weight kg  5.5
Dimensions H x W x D mm  365 x 250 x 147
STANDARDS
Safety EN 60335-1, EN 60335-2-29
Emission EN 55014-1, EN 61000-3-2
Immunity EN 55014-2, EN 61000-3-3



Specifications

SKU VIC-SKYLLATG2450
Brand Victron
Shipping Weight 6.0000kg
Unit Of Measure ea
