YOUR COMPLETE BATTERY MANAGEMENT SYSTEM

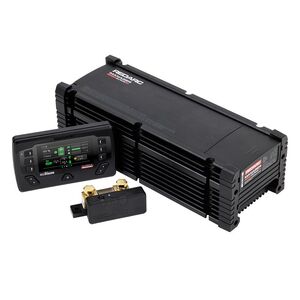

The Manager Alpha50 is a complete battery management system for charging auxiliary batteries used in recreational vehicles, caravans and camper trailers. Achieve the best charge for your secondary batteries with a combination of DC, AC and solar charging, so no matter where your adventures take you the power is always in your hands.



CHARGE

Building on our trusted battery management technology, the Manager Alpha50 is capable of delivering 50A of charge from a combination of available power sources including vehicle (DC), mains (AC) and solar. This means that you’ve got power on hand no matter whether you’re driving, plugged in at camp or soaking up the sun. Run everything from induction cooktops to fridges and air conditioners, while still charging your batteries faster than you can drain them.



Maximise your vehicle's capacity with the Manager Alpha, which is up to 55% smaller and 28% lighter than competing systems that require multiple parts to deliver the same features, leaving more room for adventure essentials.



With Start Battery Charge and Recovery modes, the Manager Alpha50 is able to use excess solar power to keep your start battery charged or bring it back to life in the event of a flat battery.



MONITOR

Including the RedVision display and Bluetooth compatibility, keep on top of your charge and battery level information in real time. RedVision allows you to view state of charge, remaining charge and current flow information and at up to five times more accurate than the leading competitor, you can be sure that “5 hours left” means “5 hours left”.



The included Smart Battery Monitor allows you to stay connected anywhere at camp. The latest Bluetooth 5.1 technology delivers reliability over distances up to 42m.



BUILT TOUGH

Tested to the toughest vibration standards in the world, the Manager Alpha is ready for adventure. Keep charging in the frigid extremes of the highlands or the scorching heat of the outback. It’s made in Australia, so you know it won’t let you down.



FEATURES

  • Simultanous 50A charging from DC, AC and solar power
  • Up to 55% smaller and 20% lighter than comparable systems
  • Start battery back charge and recovery capability
  • RedVision compatibility
  • Bluetooth 5.1 technology
  • 5 times more accurate monitoring than competitors



WHATS IN THE BOX

  • 1 x REDARC MANAGER ALPHA50 WITH REDVISION
  • Simultanous 50A charging from DC, AC and solar power
  • Up to 55% smaller and 20% lighter than comparable systems
  • Start battery back charge and recovery capability
  • RedVision compatibility
  • Bluetooth 5.1 technology
  • 5 times more accurate monitoring than competitors

PRODUCT SPECIFICATIONS - REDARC MANAGER ALPHA

SKU BMS12050-AU BMS12075-AU BMS12100-AU
Output current (A) 50A 75A 100A
Maximum charging voltage 14.2 - 16.0V (settings dependant)
Solar input voltage 9 - 32V DC
Compatible battery types Gel, AGM, Calcium, Standard Lead Acid,  Lithium (LiFePO4)
Operating temperature -20˚to 60˚C
Main unit dimensions H x W x L 120 x 154 x 400mm
Display unit dimensions H x W x D 178 x 107.5 x 25.5mm
Weight (kg) 5.8 6.0 6.1
Warranty Two Years



PRODUCT SPECIFICATIONS - REDARC REDVISION DISPLAY

SKU DISP4300-RC
Operating temperature –40° to 75°C
Storage temperature –40° to 85°C
Weight 312g
Dimensions 178 x 109 x 25mm

Specifications

SKU BMS12050-AU
Barcode # 9338628006823
Brand REDARC
Shipping Weight 5.8000kg
Shipping Width 0.154m
Shipping Height 0.120m
Shipping Length 0.400m
Shipping Cubic 0.007392000m3
GTIN_BARCODE 9338628006823
CURRENT MEASUREMENT RANGE ± 500A
START BATTERY INPUT VOLTAGE RANGE 9-32VDC
SOLAR INPUT VOLTAGE RANGE 9-32VDC
NOMINAL OUTPUT VOLTAGE 12V
COMPATIBLE BATTERY TYPES Gel, AGM, Calcium, Standard Lead Acid, Lithium
NOMINAL CURRENT RATING 50A
AC INPUT VOLTAGE RANGE 95 – 264 VAC rms / 45 – 65 Hz
OPERATING TEMPERATURE –20°C to 60°C
WEIGHT 5.8kg
HEIGHT 120mm
WIDTH 154mm
DEPTH | LENGTH 400mm
WARRANTY 2 Years
