ALLSPARK LITHIUM BATTERIES ARE THE HIGHEST SPECIFICATION LITHIUM BATTERIES ON THE AUSTRALIAN MARKET



Introducing the AllSpark Chassis/Underbody Lithium Battery Modules - where durability meets power in the toughest terrains. Engineered for off-road enthusiasts and adventure seekers, these IP67-rated modules are built to thrive beneath your vehicle, ensuring a reliable and rugged energy source for your journey.

Equipped with an exclusive advanced, next generation solid state Battery Management System (BMS) that protects your battery from damage due to extremes of Current, Voltage and Temperature and ensures correctly balanced cells.  Designed to handle high vibrations experienced in the Aussie outback corrugations or marine environments.

We use only the highest quality new internal components and new large format prismatic cells, ensuring optimal balancing of each cell for maximum longevity and ultimate performance.



BATTERY

  • IP67 rated for dusty and wet environments
  • Engineered for hassle-free installation, the chassis/underbody design seamlessly integrates into your vehicle, optimizing space without compromising on performance
  • Powder coated stainless steel construction



CELLS

AllSpark Batteries are only manufactured using brand new, premium quality A-Grade large format prismatic cells.  They have market leading high current ratings and very long life expectancy.  All AllSpark Battery LiFePO4 cells are 3.2V connected in series in banks of 4, 6, 12 or 16 to achieve 12, 24, 36 or 48V.  With cell continuous discharge ratings of 2-3C and peak output of up to 5C, you can be assured of a high performing battery to meet your high current demands.

Cell interconnecting Busbars are multi pass laser welded with more than 1" of weld per busbar connection to make them bullet proof on corrugations

Each AllSpark Prismatic cell has integrated safety mechanism to protect your vehicle in the extremely unlikely event of a cell fault

  • High Pressure safety release vents that will open to release excess energy
  • Internal Cell fusing
  • Flame retardant Electrolyte



BATTERY MANAGEMENT SYSTEM (BMS)

Extensive Protection Systems to ensure the highest performance, longevity and reliability to keep you powered offroad longer

  • Low Voltage Protection
  • High Voltage Protection
  • Over Current Discharge Protection
  • Over Current Charge Protection
  • Low Temperature Protection
  • High Temperature Protection
  • Automatic Cell Balancing
  • Short Circuit Protection
  • Reverse Polarity Protection



WHATS IN THE BOX

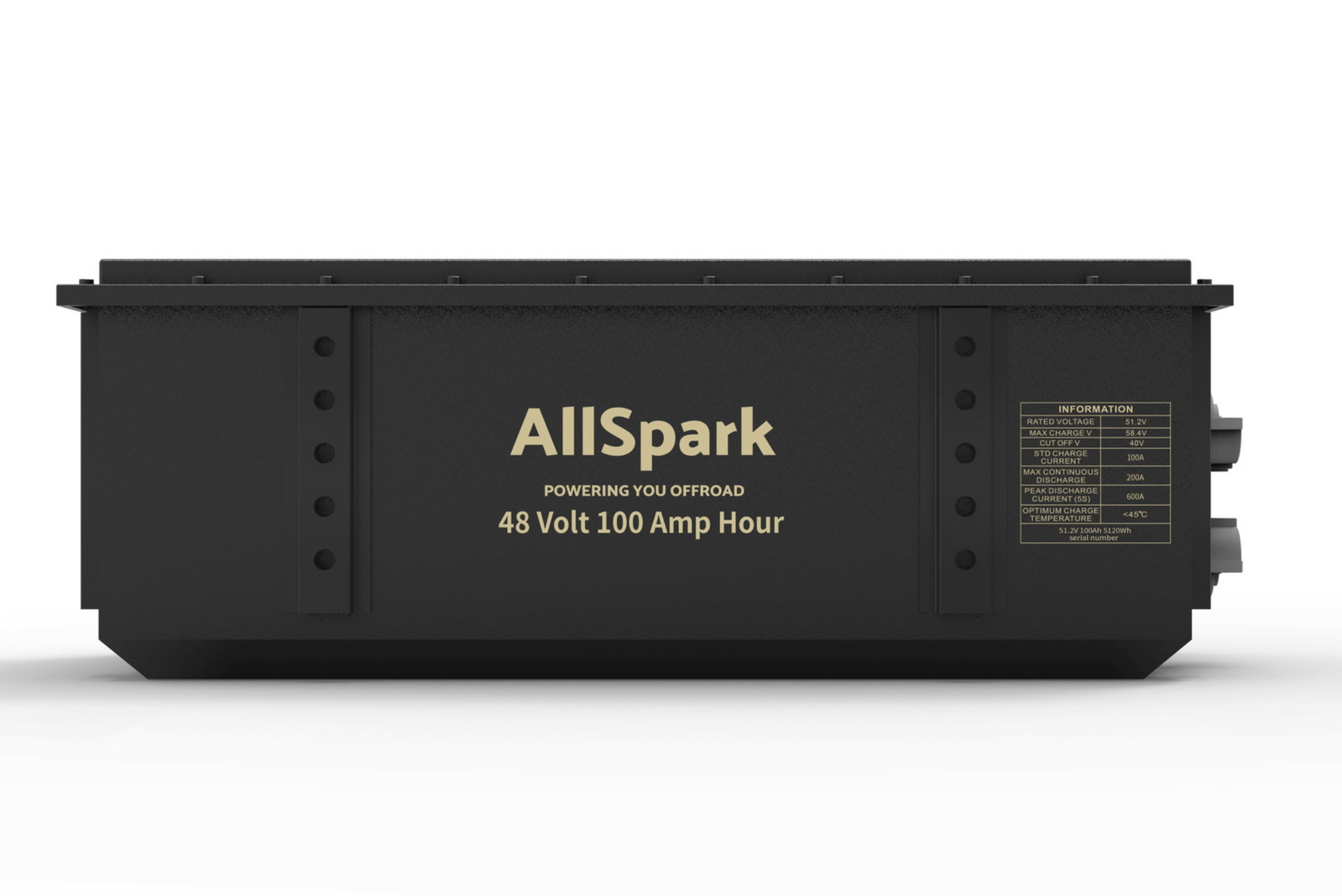

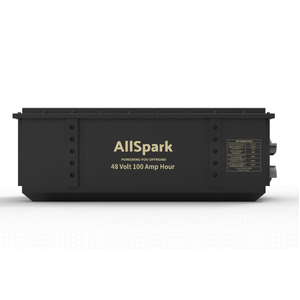

  • 1 X 48 Volt 100ah powder coated stainless steel cased LiFePO4 battery
  • 2 x parallel 250A EV sockets mounted on case, 1 x matching plug and 1 x dust cover

5 year replacement warranty

  • Water proof IP67 chassis mount case
  • Powder coated stainless steel construction
  • Exclusive Solid state BMS designed and developed by Offroad Living
  • Highest quality premium grade prismatic cells resistance matched, long battery life and no voltage sag with a 20 year design life
  • Greater than 3000 cycles @ 80% DoD before reaching 85% of original capacity
  • Power a 5000W Inverter from a SINGLE BATTERY for high power devices including coffee machines, air conditioners, toasters and kettles
  • Rapid charge
  • Designed to handle high vibration, dusty and wet environments
  • 5 Year Warranty


PRODUCT SPECIFICATIONS - CHASSIS MOUNT BATTERIES



SKU AS-20012BATLI200500CM AS-30012BATLI300600CM AS-40012BATLI300600CM AS-20024BATLI300600CM AS-10048BATLI200500CM
Battery Level Specifications
Capacity Amp Hours (C5) 200 300 400 200 100
Watt Hours 2560 3840 5120 5120 5120
Rated Voltage (V) 12.8 25.6 51.2
Max Charge Voltage (V) 14.6 29.2 58.4
Recommended Float Voltage (V) 13.6 27.2 54.4
Low Voltage Cutoff (V) 10 20 40
Rapid Charge Current (1C) for 30 mins 100
Recommeded Charge Current (A)* 50-80 50-120 80-150 50-80 30-50
Charge Profile CC/CV
Max Inverter Size (Watts - per single battery)  2500 3000 4000 5000
Max Continuous Discharge (A) 200 300 200
Peak Discharge - 10 secs (A) 500 600 500

Charge Cycles @ 80% Depth of Discharge #(with residual capacity of 85%)

@ 60% Depth of Discharge

@ 40% Depth of Discharge

> 3200+#

> 4200+

> 5000+

Optimum Temperature During Charging (˚C) < 45
Operating Temperature Range (˚C) -20 to +60
Storage Temperature Range (˚C) -40 to +125
Max Series Voltage (V) Parallel connection only, series not permitted
Max Batteries in Parallel 4
Dimensions (inc Handles mm)  350 x 300 x 200 400 x 300 x 200 550 x 300 x 200
Case Material Powder coated stainless steel construction
Weight (kg) 25 36.5 51.3
IP Rating IP67
Cell Level Specification
Cell Type Prismatic
Cell Connection 4S1P 4S2P 8S1P 16S1P
Cell Capacity 3.2V @ 200ah 3.2V @ 300ah 3.2V @ 200ah 3.2V @ 200ah 3.2V @ 100ah
Cell Casing Nickel Plated steel
Cell Balancing target 3.65 +/- 0.025
Cell Balance Current (mA) 35 +/- 5
Cell Over Discharge LV protection (V) 2.5 +/- 0.025V
Over Discharge Release Apply Charge 10.5V+ & 1A+
Over Charge Cutoff (V) 3.75 +/- 0.025
Over Charge Detection Delay (Secs) 1-1.6
Over Charge Release (V) 3.6 +/- 0.0625V
Over Charge Release Auto below Release Voltage
Over Current Detection (1) (A) 220 330 220
Over Curent Detection Delay (1) (Secs) 10
Over Current Detection (2) (A) 500 600 500 600
Over Curent Detection Delay (2) (Secs) 5
Over Current Release Remove Load - Auto release
Short Circuit Protection External Short
Short Circuit Detection Delay (uS) 200-400
Short Circuit Recovery Remove Load - Auto release
Internal Resistance (MOSFET PROTECTION) ≤20mΩ

* For best cell longevity



Special Notes about AllSpark LiFePO4 batteries Cycle Life:

Independantly Laboratory tested with 0.25C Discharge rate and 0.25C Charge rate up to 5000 cycles at a controlled temperature of 25°C.  Electronic logs record during testing show a residual capacity in excess of 85% of name plate C5 capacity after 3000 cycles.  In real world conditions, the user will experience a range of temperature, current and voltage conditions which may effect the actual performance of the battery over its life.  Lower depths of discharge % and high continuous charge and discharge rates will reduce overall cycle life.  It is feasible to reach end of battery life within the warranty period should the battery be exposed to daily extremes of high current and or high temperature every cycle. Think of this type of scenerio like driving your car at 5,000rpm in first gear everywhere you drive.  It can do it, but it is not good for longevity and ultimate performance and will wear out pre-maturely.



Specifications

SKU AS-10048BATLI200500CM
Brand AllSpark
Shipping Weight 59.6000kg
Shipping Width 0.370m
Shipping Height 0.375m
Shipping Length 0.685m
Shipping Cubic 0.095043750m3
Unit Of Measure ea
