REVOLUTIONIZE YOUR POWER MANAGEMENT WITH ALLSPARK BLUETOOTH TECHNOLOGY



Discover the future of power storage with the AllSpark Pro-series 12V 100Ah Ultraslim Lithium battery. Designed and developed in Australia by Offroad Living, this high-performance battery integrates cutting-edge Bluetooth technology, allowing you to monitor and manage your power system effortlessly from your smartphone. With a sleek, slimline aluminum case, the AllSpark battery is built to withstand harsh environments while delivering unmatched performance.

Equipped with an exclusive advanced, next generation solid state Battery Management System (BMS) that protects your battery from damage due to extremes of Current, Voltage and Temperature and ensures correctly balanced cells.  Designed to handle high vibrations experienced in the Aussie outback corrugations or marine environments.

We use only the highest quality new internal components and new large format prismatic cells, ensuring optimal balancing of each cell for maximum longevity and ultimate performance.



BLUETOOTH INTEGRATION

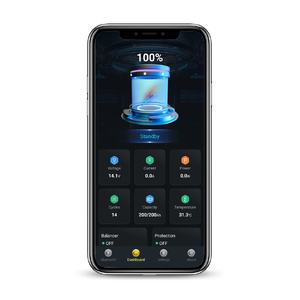

Easily monitor your battery's performance and health via Bluetooth, accessing real-time data and settings from your smart device. The AllSpark app provides detailed metrics for optimal power management, ensuring comprehensive oversight via Bluetooth, including:

  • State of Charge (%): Monitor the exact charge level.
  • Total Battery Pack Voltage: Receive precise total voltage readings.
  • Current In/Out (Net Value): Track the net current to and from the battery.
  • Power In/Out (Net Value): View the net power to and from the battery.
  • Cycles: Keep track of the number of cycles completed.
  • Capacity: Observe the available amp-hours remaining based on the current state of charge.
  • Temperature of BMS: Ensure the Battery Management System maintains optimal operating temperatures.
  • Status of BMS: Check if the system status is normal or if it's in protection mode.
  • Status of Balancing of Cells: Assess the cell balancing activities.
  • Charge and Discharge On/Off Switch: Utilize this for isolating the battery or waking up a drained battery from sleep mode.
  • Individual Cell Voltages: Monitor voltages for each cell, ensuring balanced performance.
  • History: Access historical data for informed analysis.
  • Serial Number: Verify and reference the unique battery identifier.
  • Advanced Settings: Prepare for further enhancements in future updates, scheduled for early 2025.

These parameters empower you with a granular view of your battery system, offering critical insights into its functionality and health.



BATTERY

  • Ultra Slimline Powdercoated Aluminiun Case with fold out carry handles
  • Lightweight powder coated aluminium brackets for easy installation



CELLS

AllSpark Batteries are only manufactured using brand new, premium quality A-Grade large format prismatic cells.  They have market leading high current ratings and very long life expectancy.  All AllSpark Battery LiFePO4 cells are 3.2V connected in series in banks of 4, 8, 12 or 16 to achieve 12, 24, 36 or 48V.  With cell continuous discharge ratings of 200A and peak output of up to 500A, you can be assured of a high performing battery to meet your high current demands.

Cell interconnecting Busbars are multi pass laser welded with more than 1" of weld per busbar connection to make them bullet proof on corrugations.

Each AllSpark Prismatic cell has integrated safety mechanism to protect your vehicle in the extremely unlikely event of a cell fault:

  • High Pressure safety release vents that will open to release excess energy
  • Internal Cell fusing
  • Flame retardant Electrolyte



BATTERY MANAGEMENT SYSTEM (BMS)

Extensive Protection Systems to ensure the highest performance, longevity and reliability to keep you powered offroad longer:

  • Low Voltage Protection
  • High Voltage Protection
  • Over Current Discharge Protection
  • Over Current Charge Protection
  • Low Temperature Protection
  • High Temperature Protection
  • Automatic Cell Balancing
  • Short Circuit Protection
  • Reverse Polarity Protection



WHATS IN THE BOX

  • 1 X 12 Volt 100ah Bluetooth Ultra Slimline LiFePO4 battery - Aluminium powdercoated case
  • Fixing kit - 2 lengths of M8 bolts, flat and spring washers
  • Red/Black Terminal caps

7 YEAR MANUFACTURERS REPLACEMENT WARRANTY
30 DAY MONEY BACK GUARANTEE

  • New 2025 cell technology with compact cells and casing
  • Bluetooth Integration - Connect to a smart device to monitor performance, track usage data, and receive alerts.
  • Exclusive Solid state BMS designed and developed by Offroad Living
  • Highest quality premium grade prismatic cells - resistance matched, long battery life and no voltage sag with a 20 year design life
  • Greater than 3000 cycles @ 80% DoD before reaching 85% of original capacity
  • Power a 2500W Inverter from a SINGLE BATTERY - for high power devices including coffee machines, air conditioners, toasters and kettles
  • Rapid charge - ability to charge in one hour
  • Unlimited Parallel connection or series to 24v max
  • Equivalent usable capacity to a 160ah AGM but weighs only 13kg
  • Jump start capability up to 500A
  • Designed to handle high vibration environments
  • IEC 62619 Certified to meet AS/NZS 3001:2022 requirements
  • 7 Year Warranty

PRODUCT SPECIFICATIONS - BLUETOOTH SLIMLINE ALUMINIUM CASE BATTERIES

SKU AS-10012BATLI200500USG2 / AS-10012LTUSBT AS-10012BATLI200500SLIM AS-15012BATLI200500SLIMG2 AS-20012BATLI200500SLIMG2 AS-10024BATLI200500SLIMG1
Battery Level Specifications
Capacity Amp Hours (C5) 100 100 150 200 100
Watt Hours 1,280 1,280 1,920 2,560 2,560
Rated Voltage (V) 12.8 25.6
Max Charge Voltage (V) 14.6 29.2
Recommended Float Voltage (V) 13.6 27.2
Low Voltage Cutoff (V) 10 20
Rapid Charge Current (1C) for 30 mins 100
Recommeded Charge Current (A)* 30-50 50 50
Charge Profile CC/CV
Max Inverter Size (Watts - per single battery)  2500 4000
Max Continuous Discharge (A) 200
Peak Discharge - 5 secs (A) 500

Charge Cycles @ 80% Depth of Discharge #(with remaining residual capacity of 85%)

@ 60% Depth of Discharge

@ 40% Depth of Discharge

  > 3200+#

> 4200+

  > 5000+

Optimum Temperature During Charging (˚C) < 45
Operating Temperature Range (˚C) -20 to +60
Storage Temperature Range (˚C) -40 to +125
Max Series Voltage (V) 24 48
Max Batteries in Parallel Unlimited
Dimensions (inc Handles mm)  635 x 60 x260 400 x 120 x 200 400 x 120 x 250 400 x 120 x 300
Case Material Ultraslim Aluminium Slimline Aluminium
Weight (kg) 13 12 18 21
IP Rating SLIMLINE CASES ARE NOT WATERPROOF - FOR INTERNAL USE ONLY
Cell Level Specification
Cell Type Prismatic
Cell Connection 4S1P 8S1P
Cell Capacity 3.2V @ 100ah 3.2V @ 150ah 3.2V @ 200ah 3.2V @ 100ah
Cell Casing Nickel Plated steel
Cell Balancing target 3.65 +/- 0.025
Cell Balance Current (mA) 35 +/- 5
Cell Over Discharge LV protection (V) 2.5 +/- 0.025V
Over Discharge Release Apply Charge 10.5V+ & 1A+
Over Charge Cutoff (V) 3.75 +/- 0.025
Over Charge Detection Delay (Secs) 1-1.6
Over Charge Release (V) 3.6 +/- 0.0625V
Over Charge Release Auto below Release Voltage
Over Current Detection (1) (A) 220
Over Curent Detection Delay (1) (Secs) 10
Over Current Detection (2) (A) 500
Over Curent Detection Delay (2) (Secs) 5
Over Current Release Remove Load - Auto release
Short Circuit Protection External Short
Short Circuit Detection Delay (uS) 200-400
Short Circuit Recovery Remove Load - Auto release
Internal Resistance (MOSFET PROTECTION) ≤20mΩ

* For best cell longevity

*** AllSpark Bluetooth Slimline Alumimium Case Batteries are not fully sealed or waterproof and are for internal use only ***



Special Notes about AllSpark LiFePO4 batteries Cycle Life:

Independantly Laboratory tested with 0.2C5 Discharge rate and 0.2C Charge rate up to 5000 cycles at a controlled temperature of 25°C.  Electronic logs record during testing show a residual capacity in excess of 85% of name plate C5 capacity after 3000 cycles.  In real world conditions, the user will experience a range of temperature, current and voltage conditions which may effect the actual performance of the battery over its life.  Lower depths of discharge % and high continuous charge and discharge rates will reduce overall cycle life.  It is feasible to reach end of battery life within the warranty period should the battery be exposed to daily extremes of high current and or high temperature every cycle. Think of this type of scenerio like driving your car at 5,000rpm in first gear everywhere you drive.  It can do it, but it is not good for longevity and ultimate performance and will wear out pre-maturely.



Specifications

SKU AS-10012LTUSBT
Barcode # 0745178224307
Brand AllSpark
Shipping Weight 14.2500kg
Shipping Width 0.780m
Shipping Height 0.120m
Shipping Length 0.335m
Shipping Cubic 0.031356000m3
Unit Of Measure ea

Download

Q: What is Current In/Out Net Value?
A: The Net Value is all the charge sources minus all the loads



Q: How do I store my AllSpark LiFePO4 battery?
A: If you plan to have your batteries in storage for extended periods of time, disconnect/isolate any loads or parasitic power consumers. Charge/Discharge battery to 80% State of Charge. Battery can then be stored for up to 12 months. If storing for longer, re-charge to 80% SoC every 6-12 months.



Q: What do I do if my AllSpark LiFePO4 battery goes flat?
A:
 If you discharge your battery to 10.0V, it will go into Low voltage protection mode.  This will disconnect all loads and the battery voltage will show as 0-3V.  When in LV protection, the BMS disconnects power to the battery terminals.

Most chargers and Solar controllers cannot wake up a LiFePO4 battery from LV protection if they don't have a power supply mode but with our AllSpark Bluetooth BMS, you can simply turn the battery back on via the App and start charging normally.



Q: Is this battery certifed for use in Caravans?

A: Yes - AllSpark batteries are not only compliant, but are actually "Tested" and "Certified" for compliance with IEC 62616 standards (see downloads for certificate).  Many sellers of LiFePO4 batteries in Australia claim to be "compliant" with the IEC 62616 standards, but have never actually had them tested or hold any certification for this compliance.  Self claiming compliance with a standard without 3rd party certification is not only misleading, but is fraudulant advertising practises.



Q: Does this battery comply with Australia/New Zealand Standards? Can I install them inside my caravan?

A: Yes and yes! Please see here for all the information you need to know about complying with the updated AS/NZS 3001.2:2022 standards.
