REVOLUTIONIZE YOUR POWER MANAGEMENT WITH ALLSPARK BLUETOOTH TECHNOLOGY

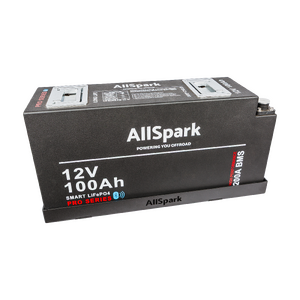

Discover the future of power storage with the AllSpark Pro-series 12V 100Ah LiFePO4 battery. Designed and developed in Australia by Offroad Living, this high-performance battery integrates cutting-edge Bluetooth technology, allowing you to monitor and manage your power system effortlessly from your smartphone. With a sleek, slimline aluminum case, the AllSpark battery is built to withstand harsh environments while delivering unmatched performance.



With AllSpark's advanced Battery Management System (BMS) and Bluetooth capabilities, you can be confident that your power system will deliver safe and reliable power wherever your offroad adventure takes you.



BLUETOOTH INTEGRATION

Easily monitor your battery's performance and health via Bluetooth, accessing real-time data and settings from your smart device. The AllSpark app provides detailed metrics for optimal power management, ensuring comprehensive oversight via Bluetooth, including:

  • State of Charge (%): Monitor the exact charge level.
  • Total Battery Pack Voltage: Receive precise total voltage readings.
  • Current In/Out (Net Value): Track the net current to and from the battery.
  • Power In/Out (Net Value): View the net power to and from the battery.
  • Cycles: Keep track of the number of cycles completed.
  • Capacity: Observe the available amp-hours remaining based on the current state of charge.
  • Temperature of BMS: Ensure the Battery Management System maintains optimal operating temperatures.
  • Status of BMS: Check if the system status is normal or if it's in protection mode.
  • Status of Balancing of Cells: Assess the cell balancing activities.
  • Charge and Discharge On/Off Switch: Utilize this for isolating the battery or waking up a drained battery from sleep mode.
  • Individual Cell Voltages: Monitor voltages for each cell, ensuring balanced performance.
  • History: Access historical data for informed analysis.
  • Serial Number: Verify and reference the unique battery identifier.
  • Advanced Settings: Prepare for further enhancements in future updates, scheduled for early 2025.

These parameters empower you with a granular view of your battery system, offering critical insights into its functionality and health.



HIGH CURRENT OUTPUT

With a continuous output of 200 Amps and a peak rating of 500 Amps, the AllSpark battery is engineered to meet the demands of high-current applications, providing reliable power when you need it most.



ADVANCED BATTERY MANAGEMENT SYSTEM (BMS)

AllSpark's state-of-the-art BMS offers extensive protection systems, including low and high voltage, over current discharge and charge protection, high and low temperarture protection, automatic cell balancing, short circuit and reverse polarity protection, ensuring optimal performance and longevity.

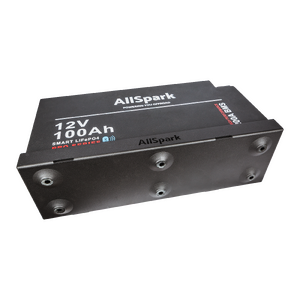

SLIMLINE ALUMINUM CASE

Crafted from ultra-slim, powder-coated aluminum, the AllSpark battery is designed for easy installation and maximum durability, ensuring durability for the long term.



PRISMATIC CELLS

Equipped with high-quality new A-Grade large format resistance matched prismatic cells, the AllSpark battery guarantees superior current ratings and a long life expectancy, providing peace of mind and exceptional power delivery.

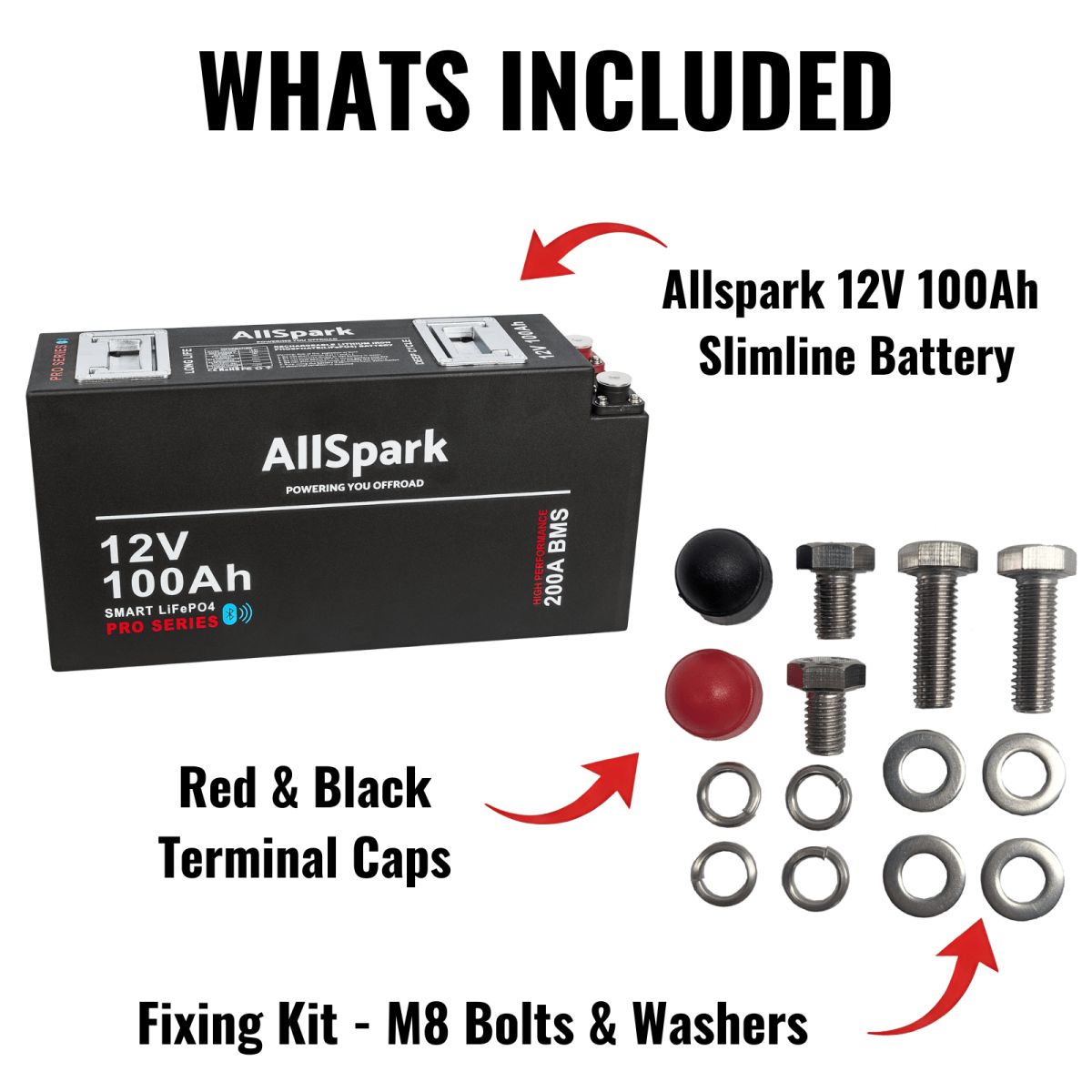

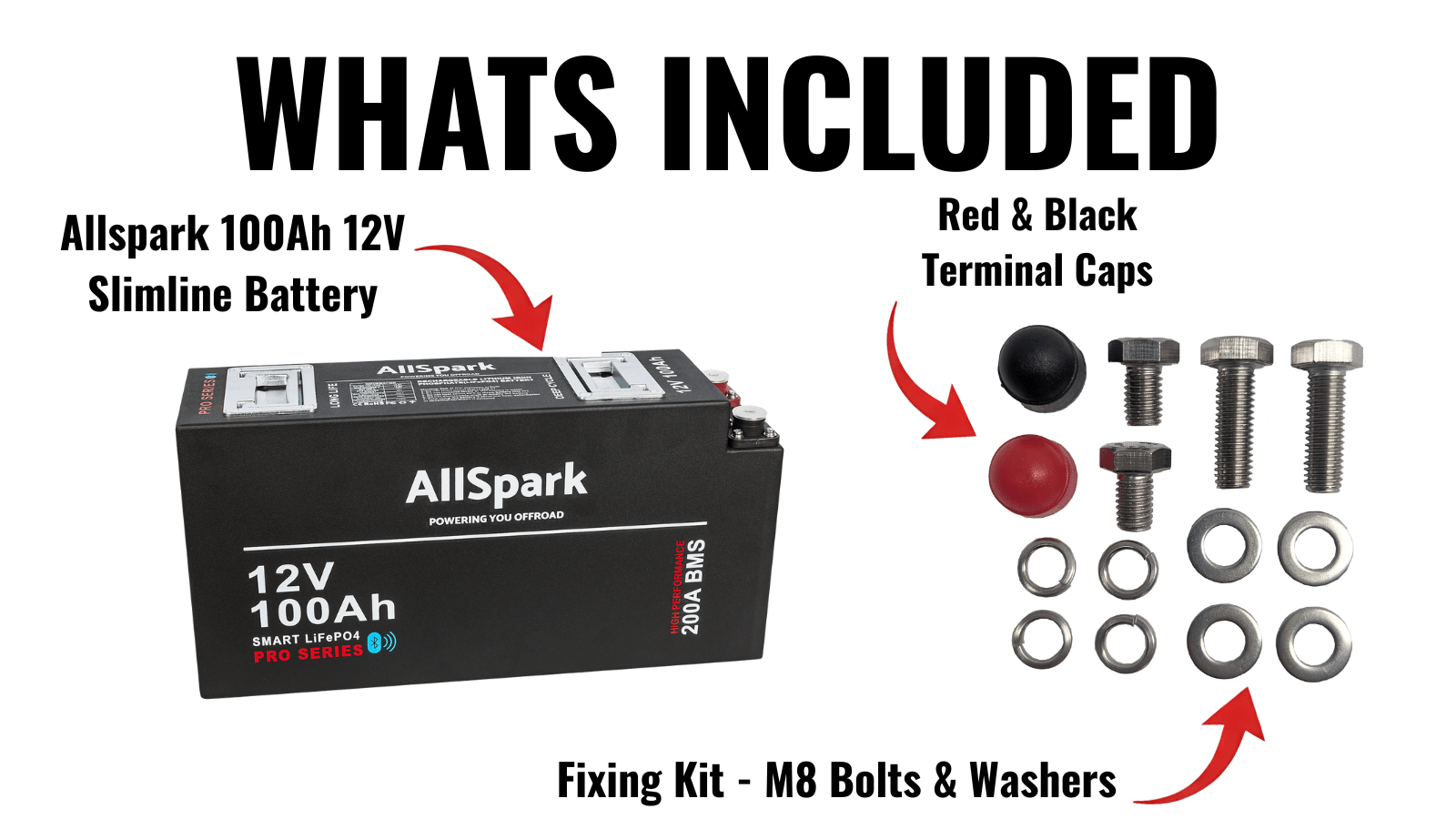

WHAT'S IN THE BOX

  • 1 x AllSpark Pro-series 12V 100Ah LiFePO4 Battery with Bluetooth
  • 4 x M8 terminal bolts (long and short), 2 x flat washers, 2 x spring washers
  • 2 x M8 plastic covers - black & red

5 YEAR MANUFACTURERS REPLACEMENT WARRANTY
30 DAY MONEY BACK GUARANTEE

  • Bluetooth Integration: Connect to a smart device to monitor performance, track usage data, and receive alerts.
  • High Current Output: Provides 200 Amps continuous and 500 Amps peak for high-demand applications.
  • Advanced BMS: Offers comprehensive protections ensuring unmatched reliability and long lifespan.
  • Slimline Aluminum Case: Features a durable, easy-to-install design suitable for rugged conditions.
  • Prismatic Cells: Guarantees superior performance and longevity.

PRODUCT SPECIFICATIONS - SLIMLINE ALUMINIUM CASE BATTERIES

SKU

AS-10012BATLI200500USG2

AS-10012BATLI200500SLIM / AS-12100SLIMBT AS-15012BATLI200500SLIMG2 / AS-12150SLIMBT AS-20012BATLI200500SLIMG2 / AS-12200SLIMBT AS-10024BATLI200500SLIMG1
Battery Level Specifications
Capacity Amp Hours (C5) 100 100 150 200 100
Watt Hours 1,280 1,280 1,920 2,560 2,560
Rated Voltage (V) 12.8 25.6
Max Charge Voltage (V) 14.6 29.2
Recommended Float Voltage (V) 13.6 27.2
Low Voltage Cutoff (V) 10 20
Rapid Charge Current (1C) for 30 mins 100
Recommeded Charge Current (A)* 30-50 50
Charge Profile CC/CV
Max Inverter Size (Watts - per single battery)  2500 4000
Max Continuous Discharge (A) 200
Peak Discharge - 5 secs (A) 500

Charge Cycles @ 80% Depth of Discharge #(with residual capacity of 85%)

@ 60% Depth of Discharge

@ 40% Depth of Discharge

  > 3200+#

> 4200+

  > 5000+

Optimum Temperature During Charging (˚C) < 45
Operating Temperature Range (˚C) -20 to +60
Storage Temperature Range (˚C) -40 to +125
Max Series Voltage (V) 24 48
Max Batteries in Parallel Unlimited
Dimensions (inc Handles mm)  635 x 60 x260 400 x 120 x 200 400 x 120 x 250 400 x 120 x 300
Case Material Ultraslim Aluminium Slimline Aluminium
Weight (kg) 13 12 18 21
IP Rating SLIMLINE CASES ARE NOT WATERPROOF - FOR INTERNAL USE ONLY
Cell Level Specification
Cell Type Prismatic
Cell Connection 4S1P 8S1P
Cell Capacity 3.2V @ 100ah 3.2V @ 150ah 3.2V @ 200ah 3.2V @ 100ah
Cell Casing Nickel Plated steel
Cell Balancing target 3.65 +/- 0.025
Cell Balance Current (mA) 35 +/- 5
Cell Over Discharge LV protection (V) 2.5 +/- 0.025V
Over Discharge Release Apply Charge 10.5V+ & 1A+
Over Charge Cutoff (V) 3.75 +/- 0.025
Over Charge Detection Delay (Secs) 1-1.6
Over Charge Release (V) 3.6 +/- 0.0625V
Over Charge Release Auto below Release Voltage
Over Current Detection (1) (A) 220
Over Curent Detection Delay (1) (Secs) 10
Over Current Detection (2) (A) 500
Over Curent Detection Delay (2) (Secs) 5
Over Current Release Remove Load - Auto release
Short Circuit Protection External Short
Short Circuit Detection Delay (uS) 200-400
Short Circuit Recovery Remove Load - Auto release
Internal Resistance (MOSFET PROTECTION) ≤20mΩ

* For best cell longevity

*** AllSpark Slimline Alumimium Case Batteries are not fully sealed or waterproof and are for internal use only ***



Special Notes about AllSpark LiFePO4 batteries Cycle Life:

Independantly Laboratory tested with 0.2C5 Discharge rate and 0.2C Charge rate up to 5000 cycles at a controlled temperature of 25°C.  Electronic logs record during testing show a residual capacity in excess of 85% of name plate C5 capacity after 3000 cycles.  In real world conditions, the user will experience a range of temperature, current and voltage conditions which may effect the actual performance of the battery over its life.  Lower depths of discharge % and high continuous charge and discharge rates will reduce overall cycle life.  It is feasible to reach end of battery life within the warranty period should the battery be exposed to daily extremes of high current and or high temperature every cycle. Think of this type of scenerio like driving your car at 5,000rpm in first gear everywhere you drive.  It can do it, but it is not good for longevity and ultimate performance and will wear out pre-maturely.



Specifications

SKU AS-12100SLIMBT
Barcode # 0721688084129
Brand AllSpark
Shipping Weight 12.3000kg
Shipping Width 0.250m
Shipping Height 0.300m
Shipping Length 0.470m
Shipping Cubic 0.035250000m3
Unit Of Measure ea

Download

Q: What is Current In/Out Net Value?
A: The Net Value is all the charge sources minus all the loads

Q: How do I store my AllSpark LiFePO4 battery?
A: If you plan to have your batteries in storage for extended periods of time, disconnect/isolate any loads or parasitic power consumers. Charge/Discharge battery to 80% State of Charge. Battery can then be stored for up to 12 months. If storing for longer, re-charge to 80% SoC every 6-12 months.

Q: What do I do if my AllSpark LiFePO4 battery goes flat?
A:
 If you discharge your battery to 10.0V, it will go into Low voltage protection mode.  This will disconnect all loads and the battery voltage will show as 0-3V.  When in LV protection, the BMS disconnects power to the battery terminals.

Most chargers and Solar controllers cannot wake up a LiFePO4 battery from LV protection if they don't have a power supply mode but with our AllSpark Bluetooth BMS, you can simply turn the battery back on via the App and start charging normally.
