GRAB YOURSELF A GREAT DEAL ON THE ALLSPARK 100AH ULTRA COMPACT LITHIUM BATTERY



and score a BONUS Victron 500a Smart shunt + Mounting Tray and straps



Includes:

  • 1 X 12 Volt 100ah ULTRA COMPACT ABS Case LiFePO4 battery
  • Fixing kit - 2 lengths of M8 bolts, flat and spring washers
  • Red/Black Terminal caps
  • Bonus Victron Smart Shunt
  • Bonus Allspark Aluminium Mounting tray
  • Bonus Allspark tie down strap



AllSpark 100Ah ABS case Lithium Battery: Unleash the power of lithium with the Allspark 100Ah Lithium Battery. This high-performance battery offers a constant output of 175A and a peak output of 320A, ensuring you have the energy you need when you need it.

Check out the AllSpark 100ah ABS Lithium Battery

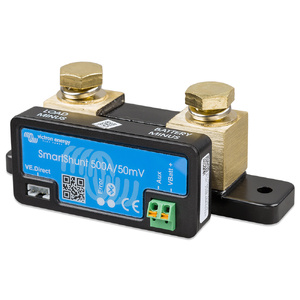

Victron Smart Shunt: The Victron SmartShunt is an all in one battery monitor, which connects via Bluetooth to the VictronConnect App on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more.

Check out the Victron Smart Shunt





WHATS IN THE BOX



  • AllSpark Lithium Battery with Exclusive Solid state BMS designed and developed by Offroad Living
  • Highest quality premium grade prismatic cells  - resistance matched, long battery life and no voltage sag with a 20 year design life
  • All in one Bluetooth Battery Monitor - conveniently read out all monitored battery parameters
  • Mounting Tray and straps - safely secure your battery

PRODUCT SPECIFICATIONS - ABS CASE BATTERIES

SKU AS-10012BATLI175320G2 AS-15012BATLI175320 AS-20012BATLI200500G2 AS-25012BATLI200500 AS-30012BATLI300600 AS-12024BATLI175320 AS-20024BATLI200500
Battery Level Specifications
Capacity Amp Hours (C5) 100 150 200 250 300 120 200
Watt Hours 1,280 1,920 2,560 3,200 3840 3,072 5,120
Rated Voltage (V) 12.8 12.8 12.8 12.8 12.8 25.6 25.6
Max Charge Voltage (V) 14.6 14.6 14.6 14.6 14.6 29.2 29.2
Recommended Float Voltage (V) 13.6 13.6 13.6 13.6 13.6 27.2 27.2
Low Voltage Cutoff (V) 10 10 10 10 10 20 20
Rapid Charge Current (1C) for 30 mins 100 100 100 100 200 100 100
Recommeded Charge Current (A)* 20-40 30-50 50-80 60-80 50-150 30-50 50-80
Charge Profile CC/CV
Max Inverter Size (Watts - per single battery)  2000 2000 2500 2500 3000 4000 4000
Max Continuous Discharge (A) 175 175 200 200 300 175 200
Peak Discharge - 10 secs (A) 320 320 500 500 600 320 500

Charge Cycles @ 80% Depth of Discharge #(with residual capacity of 85%)

@ 60% Depth of Discharge

@ 40% Depth of Discharge

> 3200+#

> 4200+

> 5000+

Optimum Temperature During Charging (˚C) < 45
Operating Temperature Range (˚C) -20 to +60
Storage Temperature Range (˚C) -40 to +125
Max Series Voltage (V) 24 48
Max Batteries in Parallel Unlimited
Overall Dimensions (inc Handles L x W x H mm)

229 x 138 x 208

(+4mm for terminals)

405 x 172 x 217

(terminals below handle height)

357 x 190 x 247

(+3mm for terminals)

520 x 265 x 220

(+3mm for terminals)

357 x 190 x 247

(+3mm for terminals)

520 x 265 x 220

(+3mm for terminals)

520 x 265 x 220

(+3mm for terminals)

Case Footprint Dimensions (L x W x H mm)  223 x 134 x 208 345 x 172 x 207 340 x 187 x 247 485 x 265 x 220 340 x 187 x 247 485 x 265 x 220  485 x 265 x 220
Overall Dimensions (inc Handles L x W x H mm)

229 x 138 x 208

(+4mm for terminals)

405 x 172 x 217

(terminals below handle height)

367 x 190 x 247

(+5mm for terminals)

520 x 265 x 220

(+3mm for terminals)

367 x 190 x 247

(+5mm for terminals)

520 x 265 x 220

(+3mm for terminals)

520 x 265 x 220

(+3mm for terminals)

Case Footprint Dimensions (L x W x H mm)  224 x 134 x 208 402 x 172 x 217 340 x 183 x 247 487 x 262 x 220 340 x 183 x 247 487 x 262 x 220  487 x 262 x 220
Case Material ABS Plastic
Weight (kg) 9.5 19 21 27 31 28 42
IP Rating IP65
Cell Level Specification
Cell Type Prismatic
Cell Connection 4S1P 4S2P 4S1P 4S2P 4S1P 8S1P 8S1P
Cell Capacity 3.2V @ 100ah 3.2V @ 50ah 3.2V @ 200ah 3.2V @ 125ah 3.2V @ 300ah 3.2V @ 120ah 3.2V @ 200ah
Cell Casing Nickel Plated steel
Cell Balancing target 3.65 +/- 0.025
Cell Balance Current (mA) 35 +/- 5
Cell Over Discharge LV protection (V) 2.5 +/- 0.025V
Over Discharge Release Apply Charge 10.5V+ & 1A+
Over Charge Cutoff (V) 3.75 +/- 0.025
Over Charge Detection Delay (Secs) 1-1.6
Over Charge Release (V) 3.6 +/- 0.0625V
Over Charge Release Auto below Release Voltage
Over Current Detection (1) (A) N/A N/A 220 220 330 N/A 200
Over Curent Detection Delay (1) (Secs) N/A N/A 10 10 10 N/A 10
Over Current Detection (2) (A) 320 320 500 500 500 320 500
Over Current Detection Delay (2) (secs) 10 10 5 5 5 10 5
Over Current Release Remove Load - Auto release
Short Circuit Protection External Short
Short Circuit Detection Delay (uS) 200-400
Short Circuit Recovery Remove Load - Auto release
Internal Resistance (MOSFET PROTECTION) ≤20mΩ

* For best cell longevity



Special Notes about AllSpark LiFePO4 batteries Cycle Life:

Independantly Laboratory tested with 0.25C Discharge rate and 0.25C Charge rate up to 5000 cycles at a controlled temperature of 25°C.  Electronic logs record during testing show a residual capacity in excess of 85% of name plate C5 capacity after 3000 cycles.  In real world conditions, the user will experience a range of temperature, current and voltage conditions which may effect the actual performance of the battery over its life.  Lower depths of discharge % and high continuous charge and discharge rates will reduce overall cycle life.  It is feasible to reach end of battery life within the warranty period should the battery be exposed to daily extremes of high current and or high temperature every cycle. Think of this type of scenerio like driving your car at 5,000rpm in first gear everywhere you drive.  It can do it, but it is not good for longevity and ultimate performance and will wear out pre-maturely.



PRODUCT SPECIFICATIONS - VICTRON SMART SHUNTS

SKU M.VIC-BMVSH500  M.VIC-BMVSH1000 VIC-IP65SS
Supply voltage range (VDC) 6.5 - 70
Current Draw <1mA
Input voltage range, auxillary battery (VDC) 6.5 - 70
Battery capacity (Ah) 1 - 9999
Operating Temperature Range (oC) -40 to 50
Measures coltage of second battery, or temperature, or midpoint Yes
Temperature measurement range (oC) -20 to 50
VE. Direct communication Port Yes
Resolution and Accuracy
Current (A) ±0.01
Voltage (V) ±0.01
Amp hours (Ah) ±0.01
State of charge (0-100%) (%) ±0.01
Time to go (min) ±1
Temperature (if optional temperature sensor connected) (oC) ±1 (0-50)
Accuracy of current measurement (%) ±0.4
Offset (mA) Less than 20 Less than 40 Less than 20
Accuracy of voltage measurement (%) ±0.3
Dimensions (H x W x D mm) 46 x 120 x 54 68 x 168 x 75 46 x 120 x 54
Shunt connection bolts M10
Protection category IP21 IP65
Stored Trends
Data Stored Battery voltage, current, state of charge % as well as the Aux input (Battery temperature, or midpoint deviation, or starter battery voltage)
Number of days trends data is stored 46



PRODUCT SPECIFICATIONS - ALLSPARK BATTERY TRAYS

SKU AS-BTSLTRAY003 AS-BTABSTRAY001G2 AS-BTSLTRAY002 AS-BTABSTRAY002 AS-BTABSTRAY003 AS-BTABSTRAY003G2 AS-BTABSTRAY004 AS-BTUPP001
Dimensions 400L x 120W x 37H 236L x 141W x 37H 575 x  123 x 20 412L x 179W x 37H 494L x 236W x 37H 355L x 200W x 37H 494L x 236W x 37H 545L x 210W x 25H
To Suit Battery All Slimline 100Ah Ultra Compact

150Ah slimine

(G1 Obsolete)

150ah ABS

200Ah ABS

(G1 Obsolete)

200Ah Ultra Compact

250Ah 12V (G1 Obsolete)

or 120Ah 24V or 200Ah 24V ABS

Ultimate Power Pack
Material Powder coated pressed aluminium





Specifications

SKU as-100aDeal
Brand AllSpark
Shipping Weight 20.0000kg
Shipping Width 0.330m
Shipping Height 0.250m
Shipping Length 0.295m
Shipping Cubic 0.024337500m3

This Deal is strictly while stocks last. Don`t miss Out
